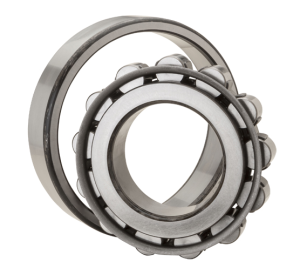

Bearing N 209 NTN

Key Features

Bearing Type: Cylindrical Roller Bearing (N Type, Separable)

Model: N 209

Brand: NTN

Bore Diameter (d): 45 mm

Outer Diameter (D): 85 mm

Width (B): 19 mm

Design: Single-row cylindrical rollers, outer ring with two ribs, inner ring without ribs

Load Ratings: Dynamic ~56.0 kN | Static ~55.0 kN

Material: High-quality alloy steel with pressed steel cage

Radial Internal Clearance: CN (Normal)

Precision Rating: ISO Class 0

Speed Limits: ~7,800 rpm (grease) | ~9,200 rpm (oil)

Temperature Range: –40 °C to +120 °C

Weight: ~0.43 kg

Applications: Gearboxes, compressors, pumps, electric motors, conveyors, and industrial machinery
