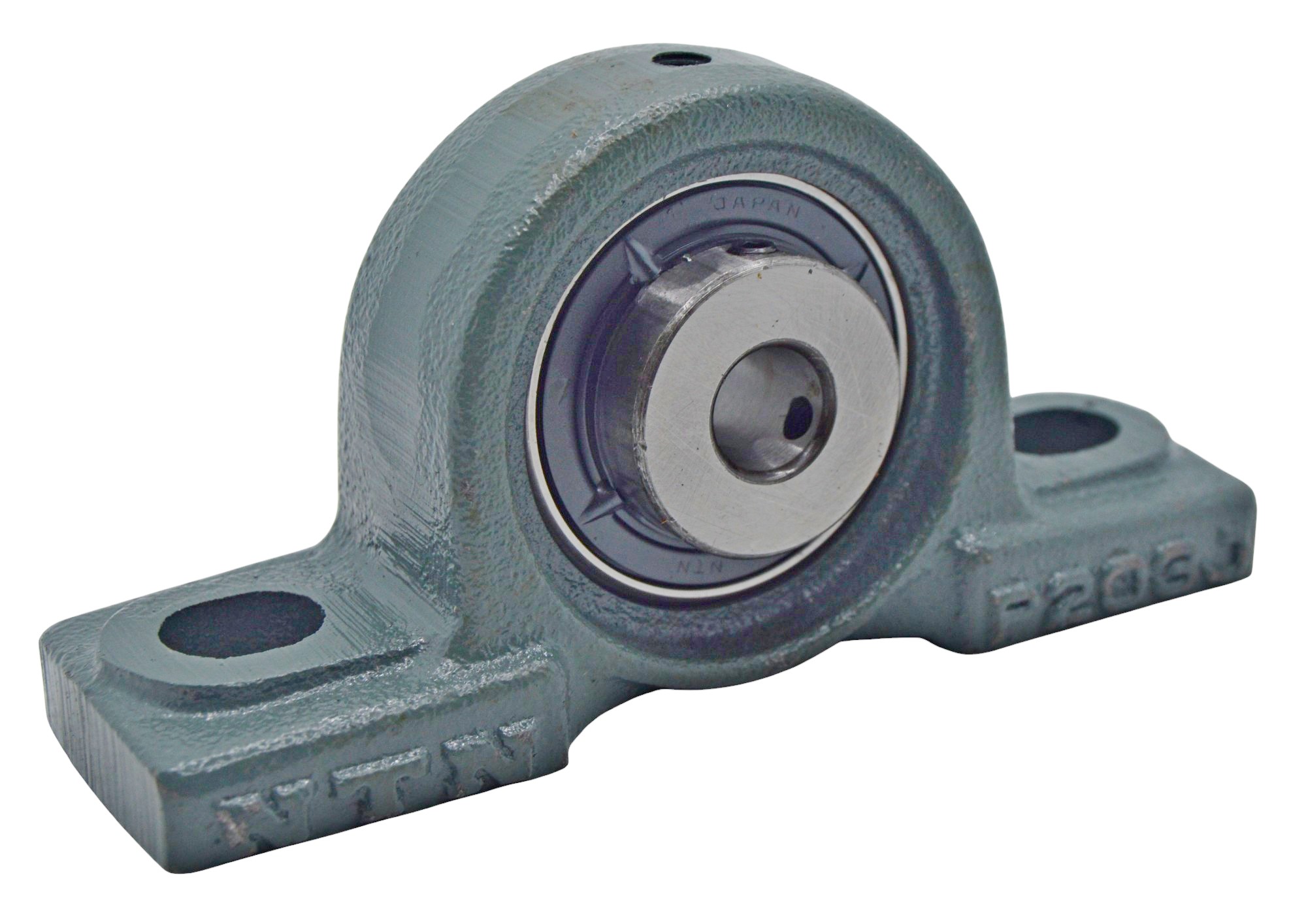

Bearing UCP 201 NTN

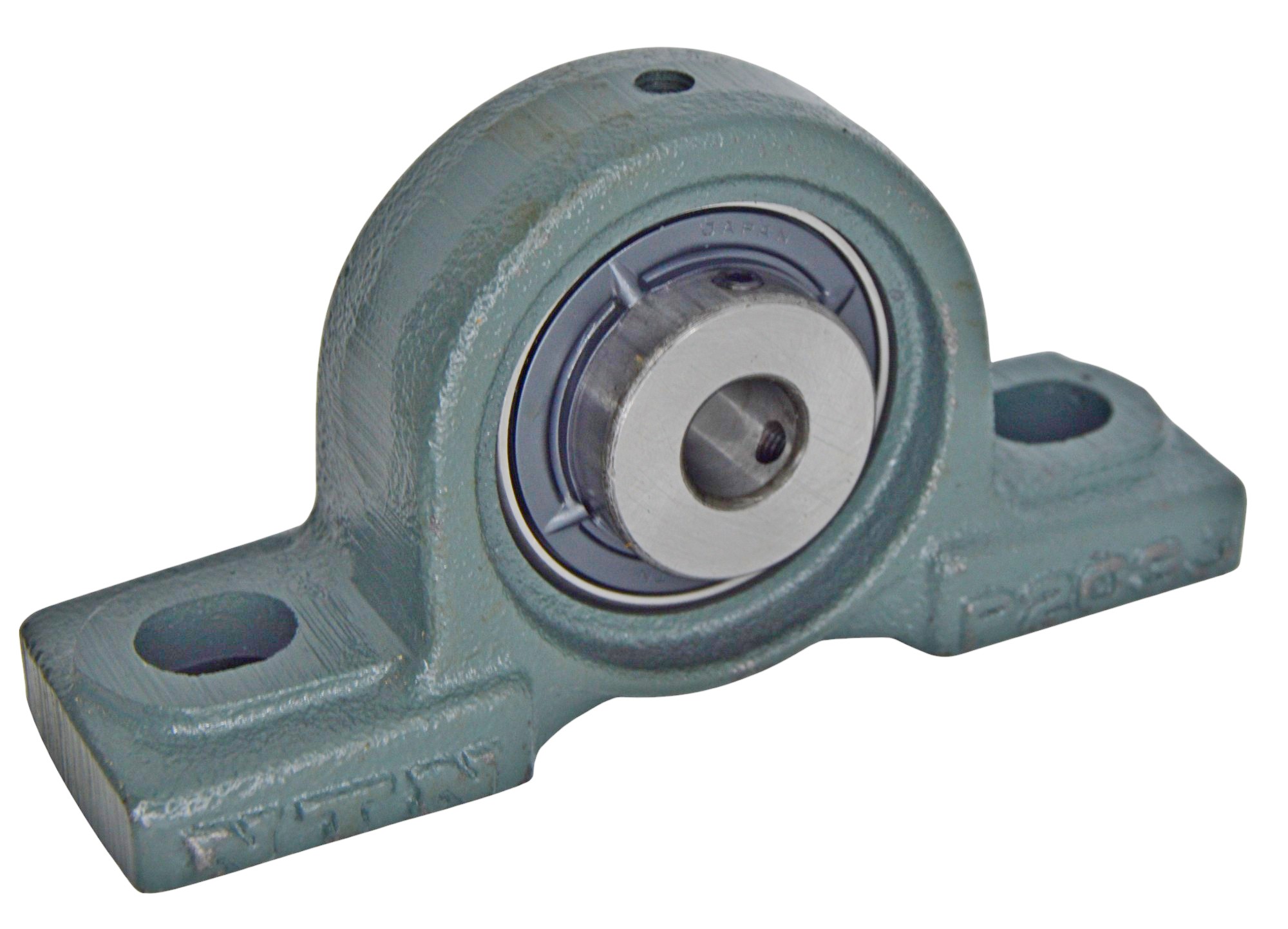

Bearing UCP 201 NTN - Image 2

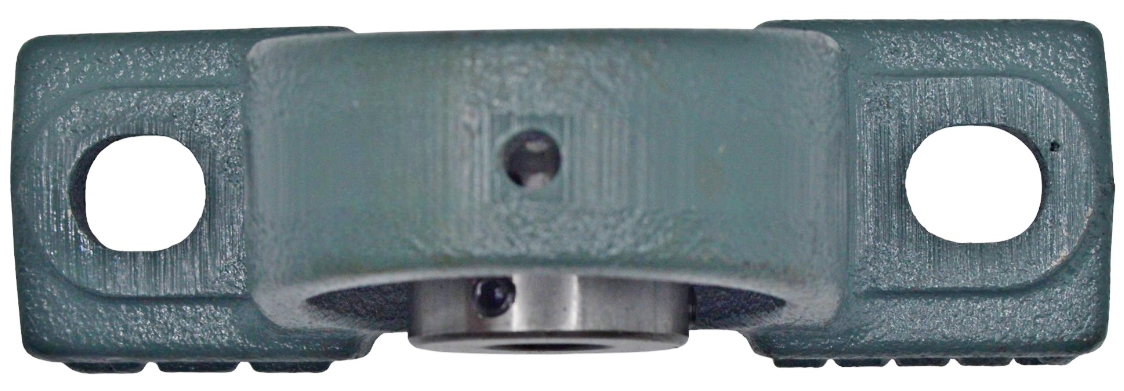

Bearing UCP 201 NTN - Image 3

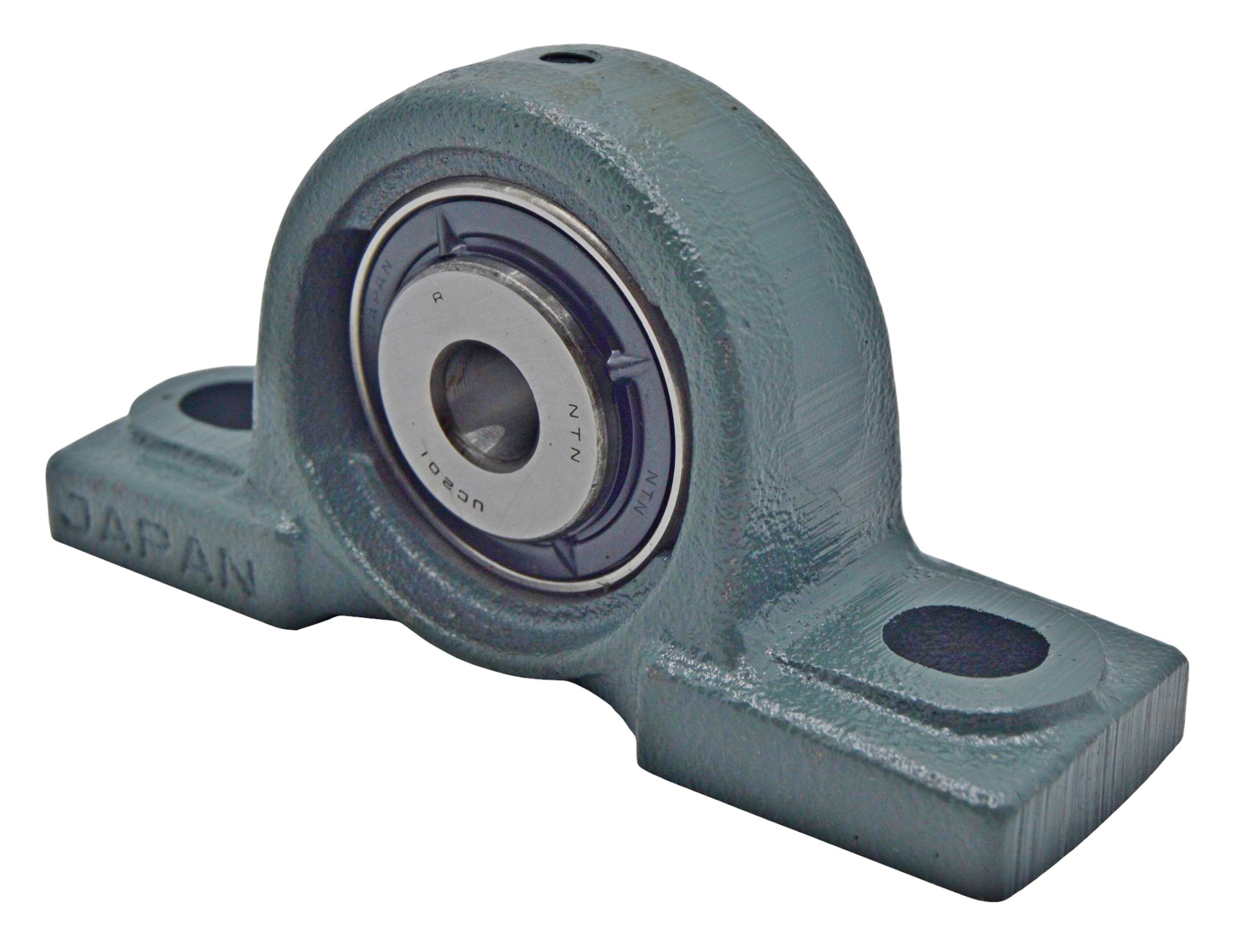

Bearing UCP 201 NTN - Image 4

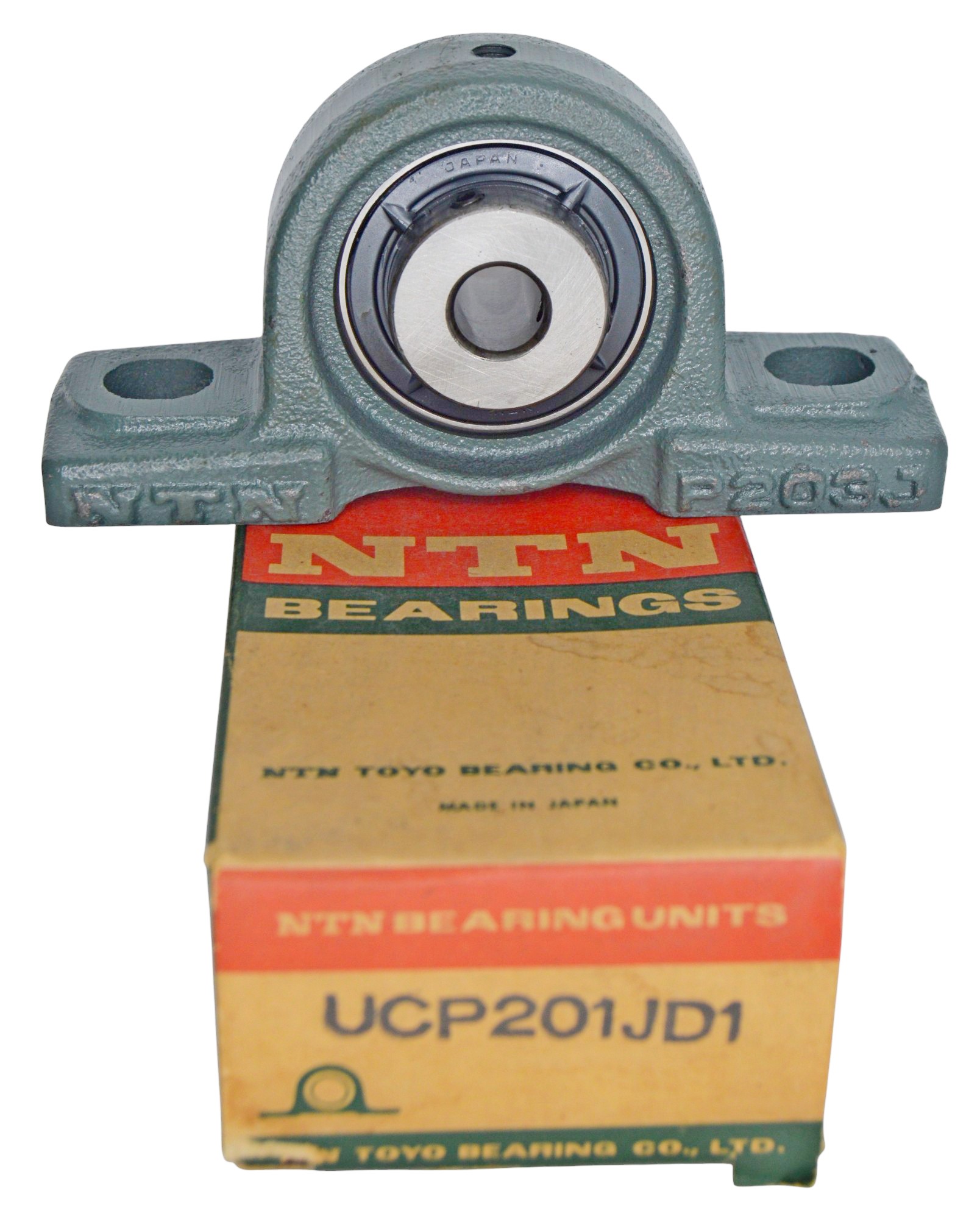

Bearing UCP 201 NTN - Image 5
,

Bearing UCP 201 NTN

₨ 3,980

Availability: 50 in stock

SKU: 0837 Categories: , Brand:

Key Dimensions

Parameter Size
Bore Diameter (d) 12 mm
Housing Base to Shaft Center (h) 27 mm
Base Length (L) 95 mm
Base Width (A) 38 mm
Bolt Hole Distance (J) 71 mm

 Features & Benefits

Complete Pillow Block Unit – Includes bearing insert and solid housing for easy mounting.

Self-Aligning Design – Compensates for minor shaft misalignment.

Durable Cast Iron Housing – Provides excellent rigidity and load support.

Set-Screw Shaft Locking – Ensures secure and stable attachment.

Pre-Lubricated & Sealed Bearing – Offers low maintenance and extended service life.

 Common Applications

Agricultural & Construction Machinery

Conveyor & Material Handling Systems

Fans, Blowers & Compressors

Packaging & Textile Equipment

General Industrial Machinery

BEARING UCP 201 NTN – PILLOW BLOCK UNIT (INSERT BALL BEARING WITH HOUSING)

The NTN UCP 201 is a pillow block bearing unit consisting of a high-quality pressed steel housing and a self-aligning insert ball bearing. Designed for easy installation, durable performance, and reliable operation, it is widely used in industrial and agricultural machinery.

The bearing insert features deep groove raceways and a set-screw locking mechanism for secure shaft attachment, while the cast iron housing provides rigid support and accurate alignment under varying load conditions.
