₨ 12,000
Availability: 1 in stock
Bore (d): 65 mm
Outside Diameter (D): 140 mm
Width (B): 33 mm
Basic Dynamic Load Rating (C): ~212 kN
Basic Static Load Rating (C₀): ~196 kN
Limiting Speed: ~6 000 rpm
✔ High radial load capacity: The cylindrical roller format provides a large contact area, enabling strong radial load support.
✔ Axial displacement allowed: The NU-type design allows axial movement of the shaft relative to the housing, making it suitable for floating bearing arrangements in applications where shaft expansion or misalignment occurs.
✔ Smooth, low-friction operation: Optimized internal geometry (roller profile, raceway finish) helps reduce friction and promote efficient, stable motion.

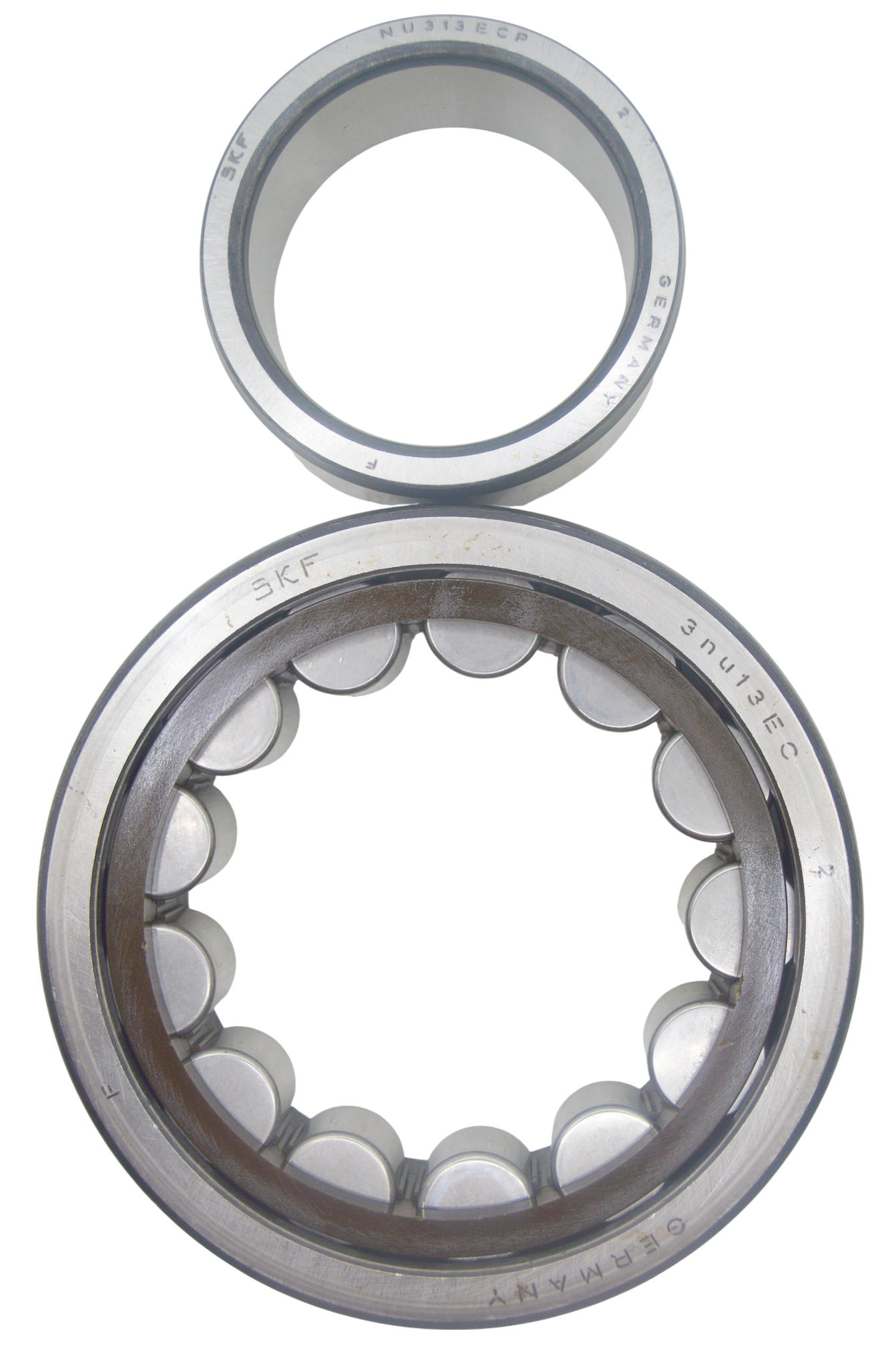

✔ Separable inner and outer rings: The inner ring + roller + cage assembly is separable from the outer ring, simplifying mounting and maintenance.
✔ Suitable for moderate to high speeds: With its width and precision design, it is appropriate for demanding industrial drives.
Electric motors & generators
Gearboxes & transmission systems
Machine tool spindles & high-speed shafts
Pumps & compressors
Industrial equipment where radial load is dominant and axial displacement must be accommodated (floating bearing setups)

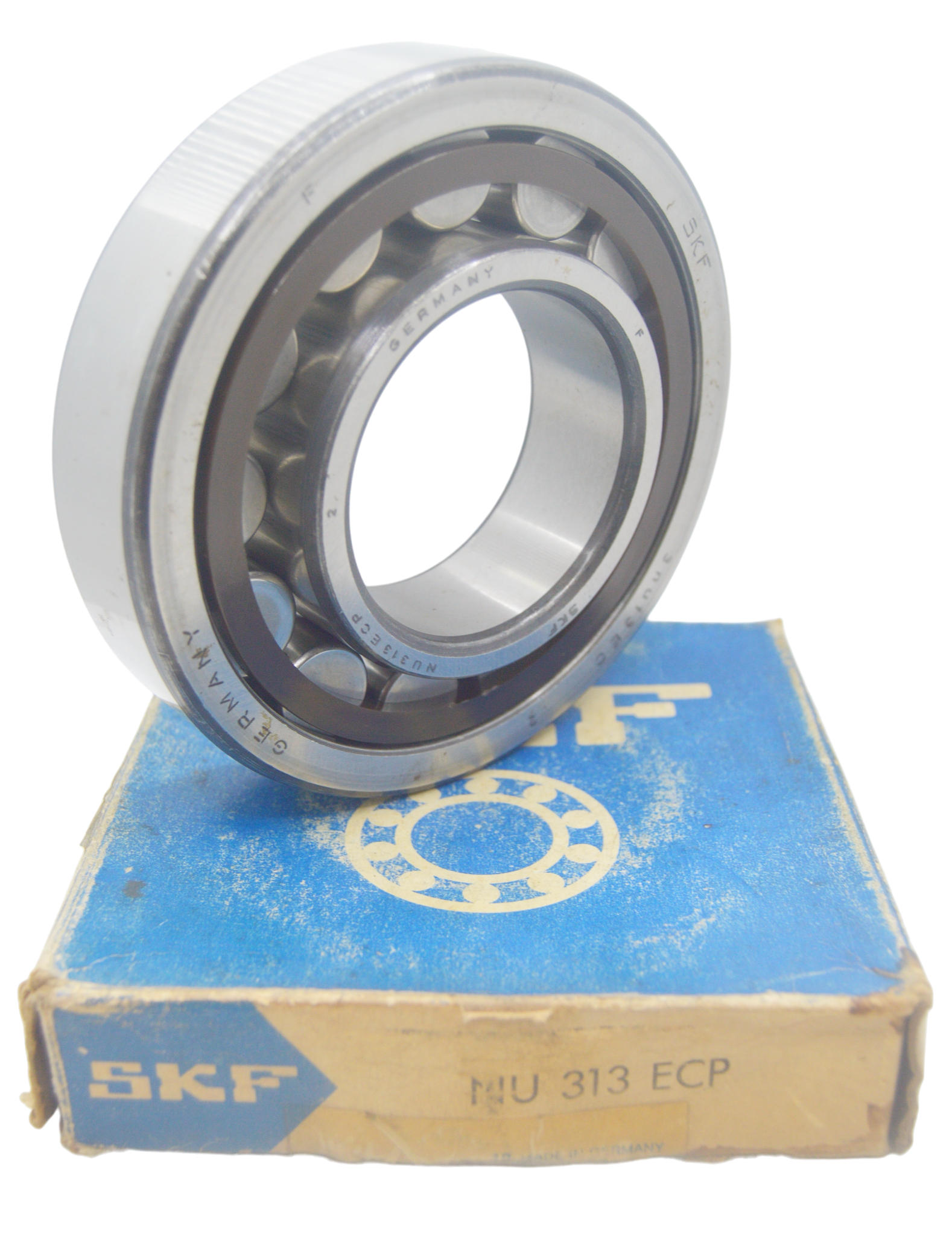

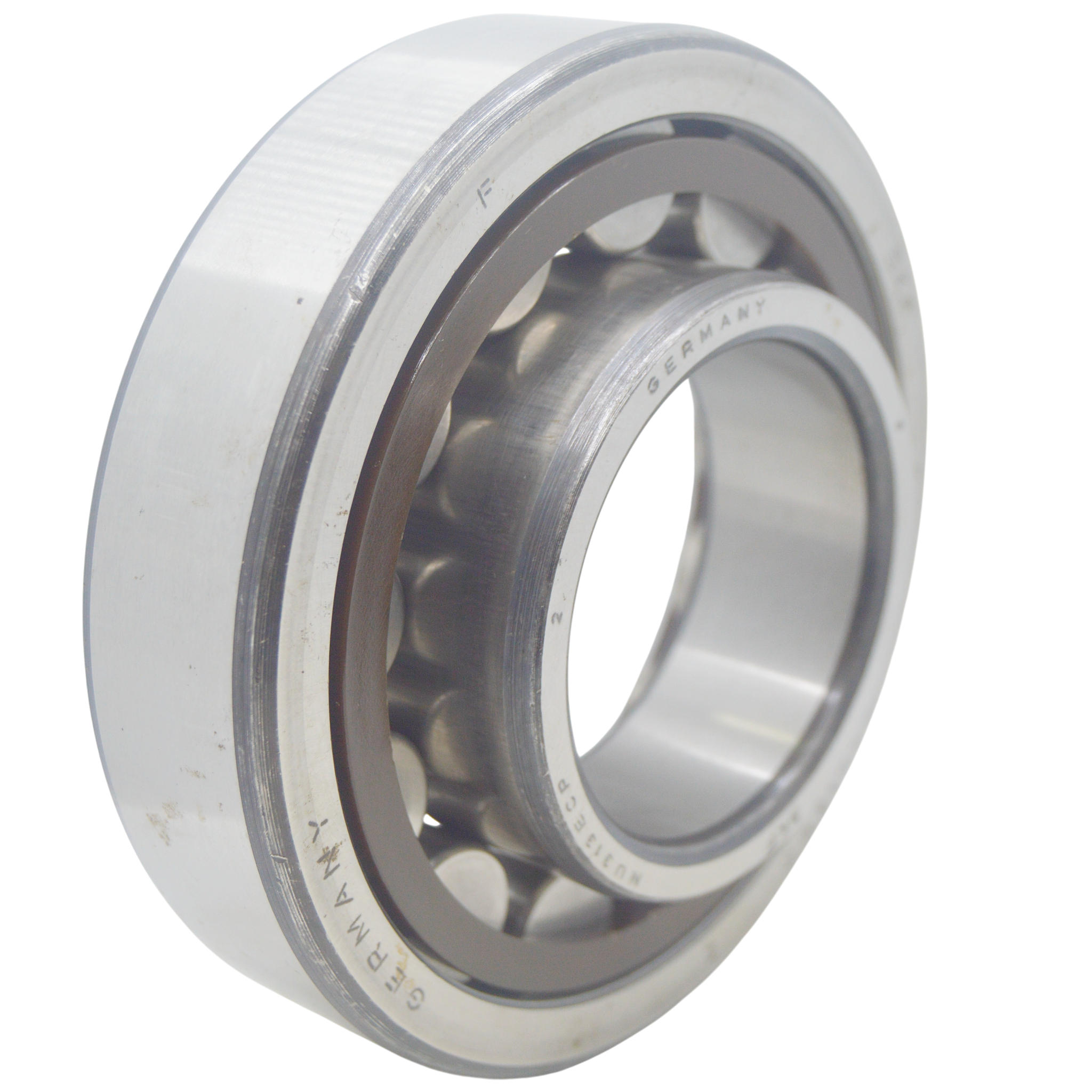

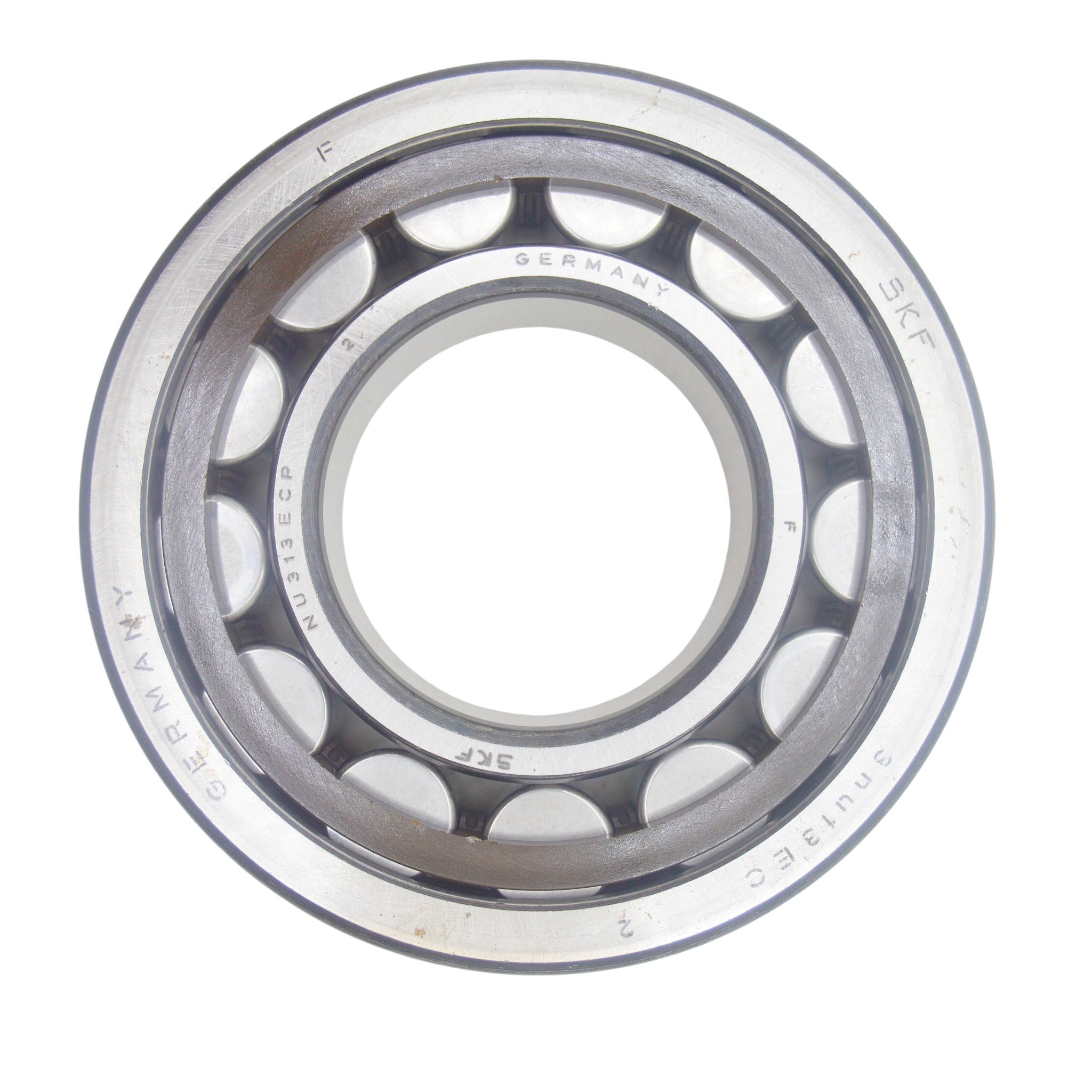

The SKF NU 313 is a high-precision single-row cylindrical roller bearing, engineered to support heavy radial loads while permitting axial movement of the shaft in both directions. With the NU-type configuration (two integral flanges on the outer ring, no flange on the inner ring), it functions as a floating bearing—ideal for applications where axial expansion or displacement of the shaft must be accommodated.
