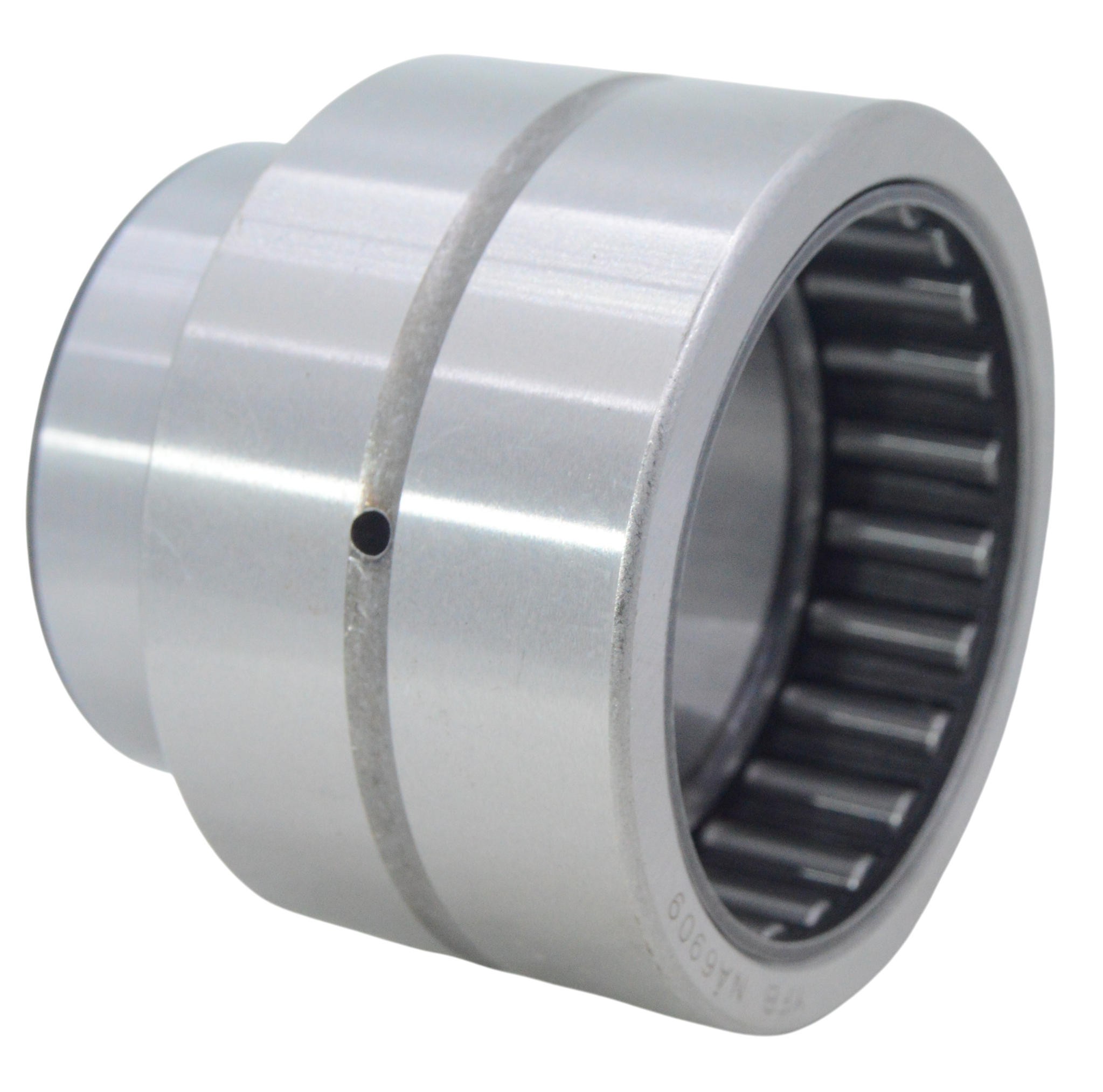

Bearing NA 6909 YFB

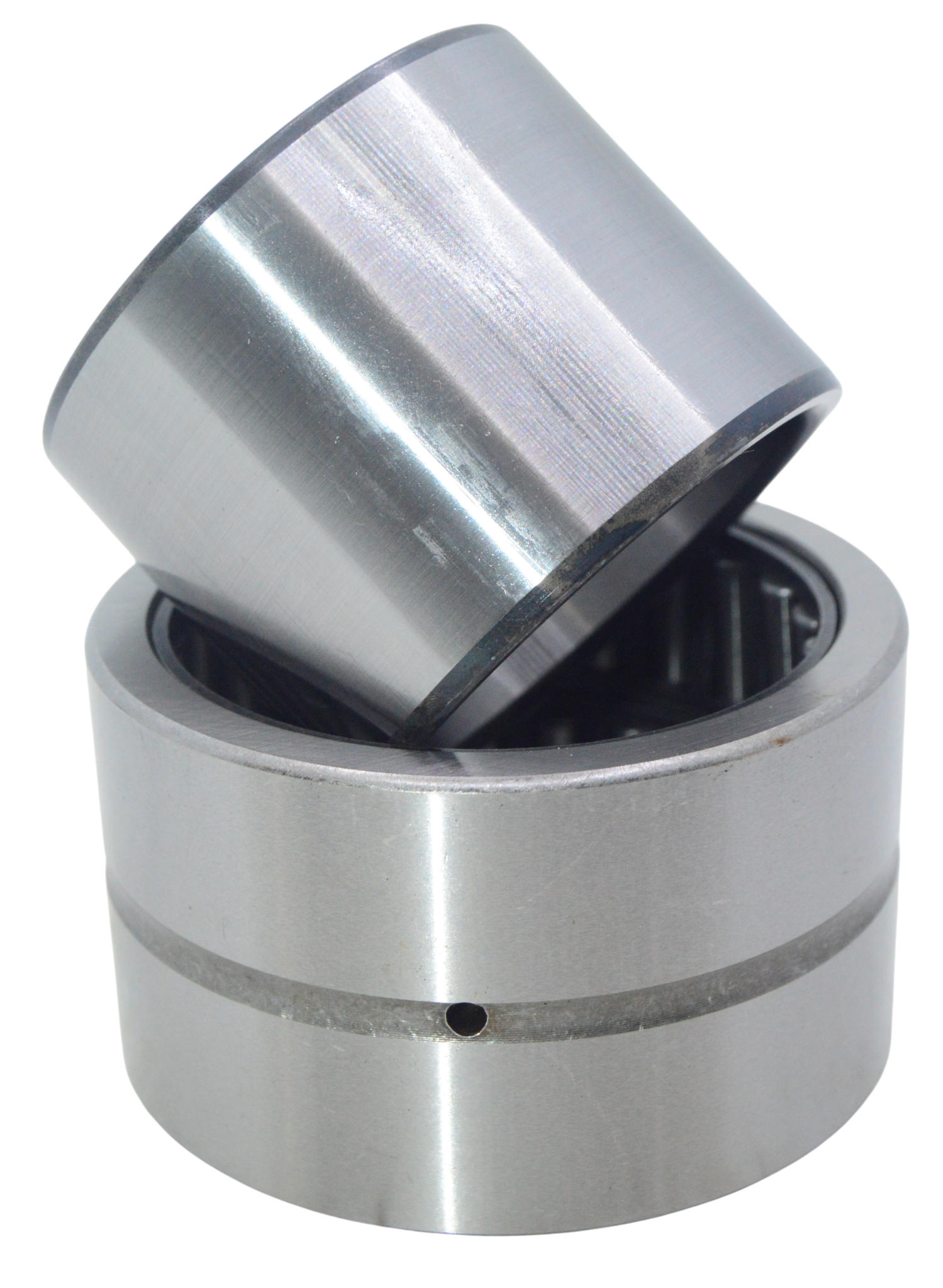

Bearing NA 6909 YFB - Image 2

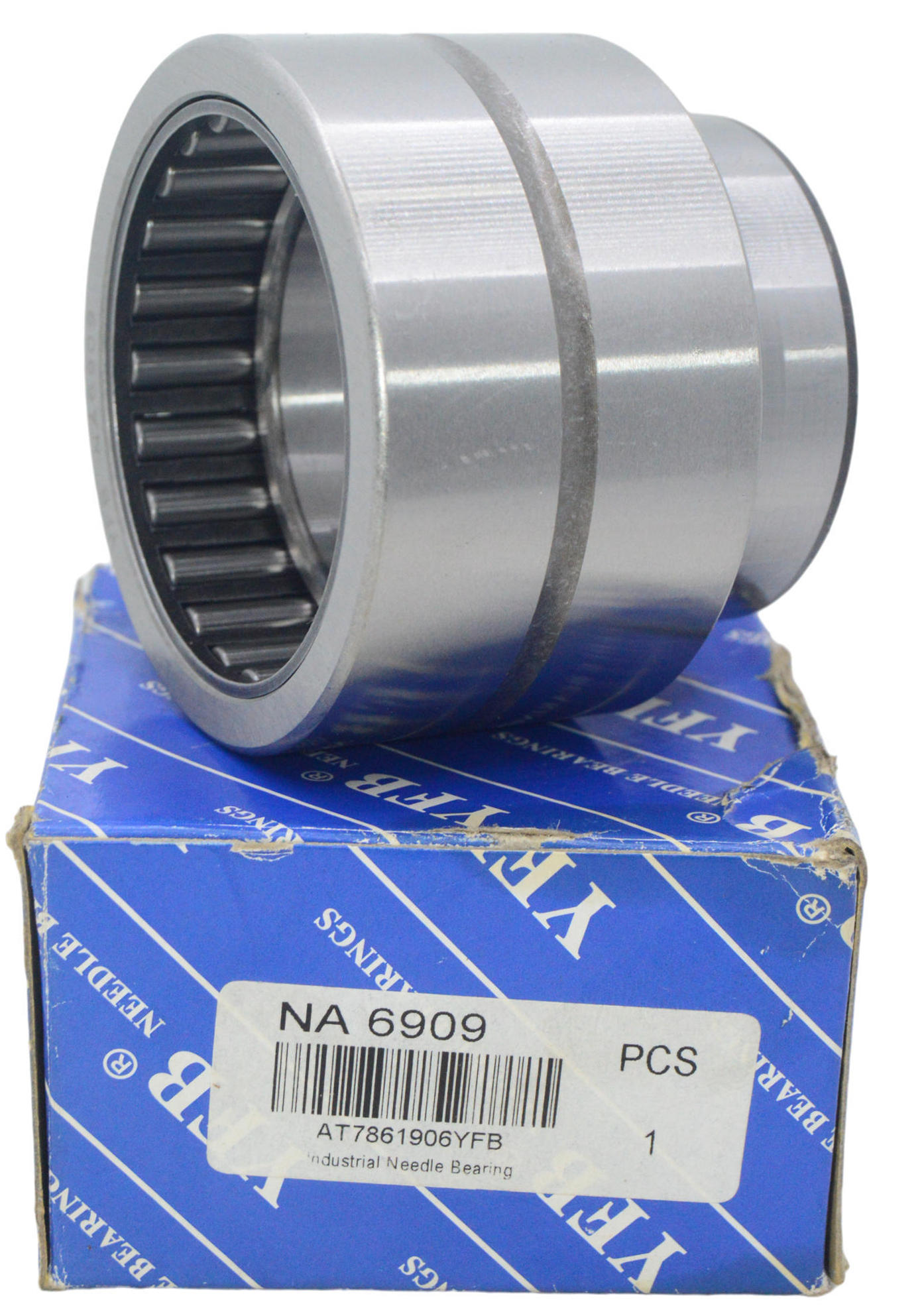

Bearing NA 6909 YFB - Image 3

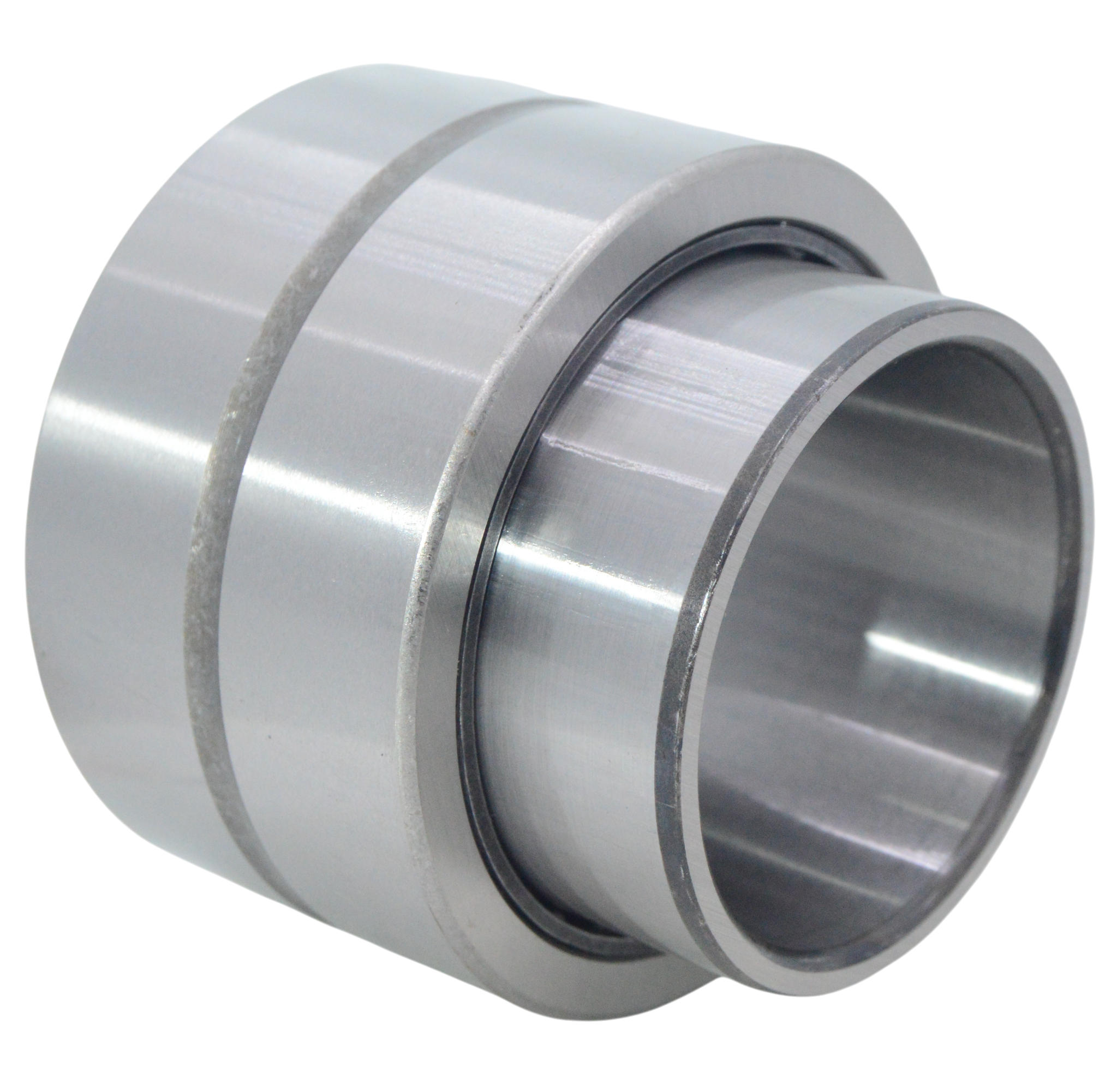

Bearing NA 6909 YFB - Image 4

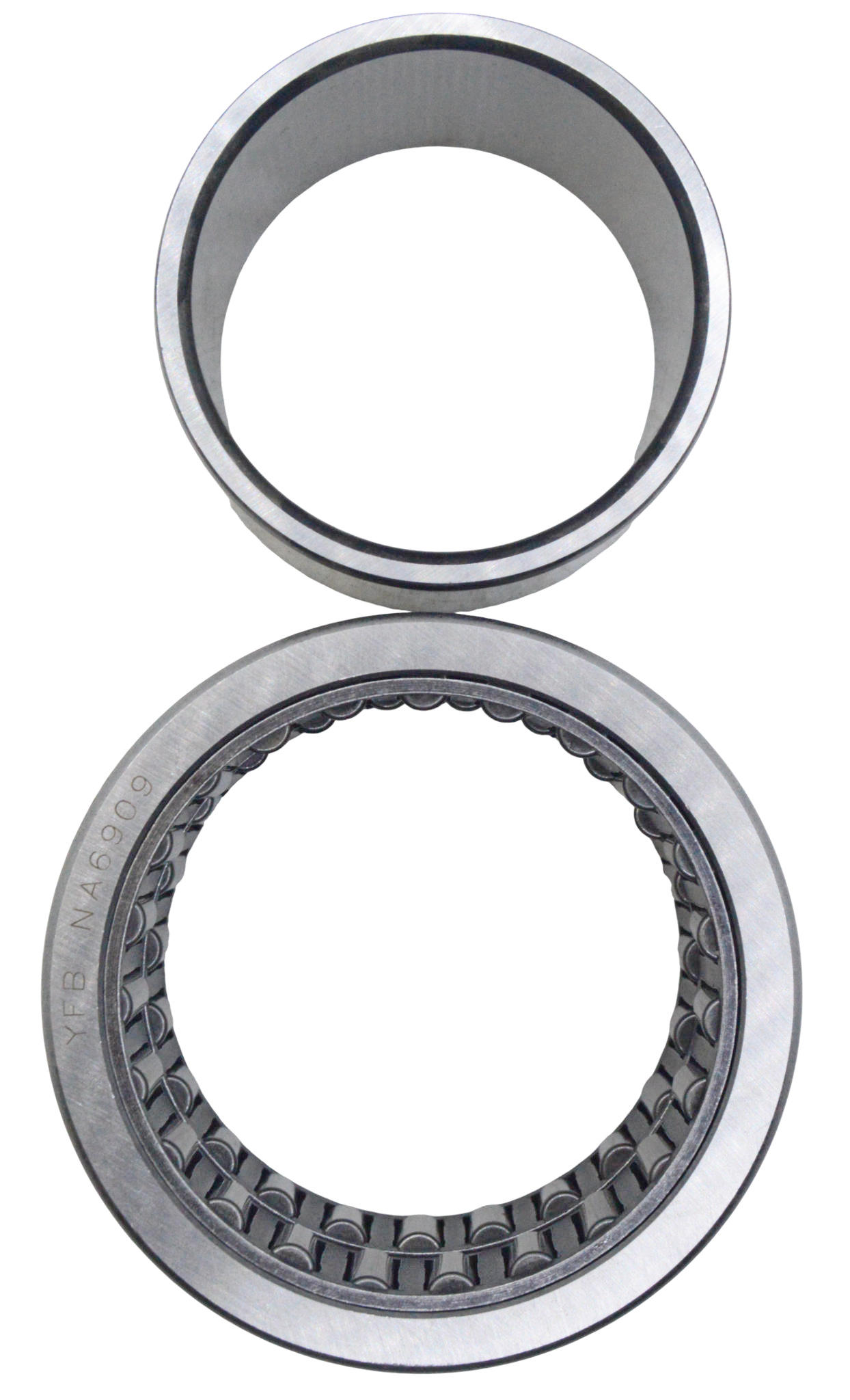

Bearing NA 6909 YFB - Image 5

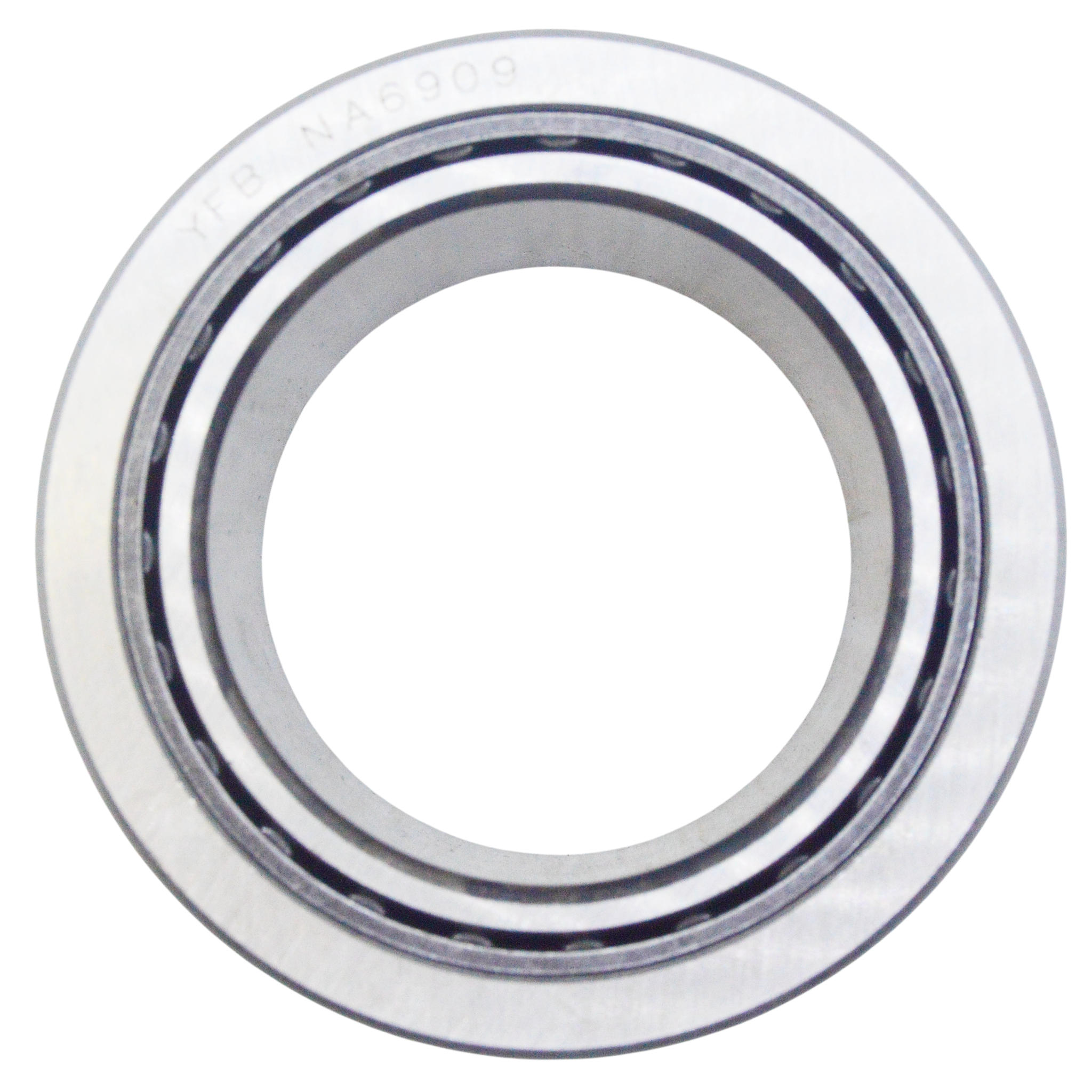

Bearing NA 6909 YFB - Image 6
,

Bearing NA 6909 YFB

₨ 2,000

Availability: 2 in stock

SKU: 0793 Categories: , Brand:

Standard Dimensions (NA 6909 Series)

Parameter Size
Inner Diameter (Fw) 45 mm
Outer Diameter (D) 68 mm
Width (C) 40 mm

 Features & Benefits

High Load Capacity – Needle roller design distributes loads efficiently over a large contact area.

Compact Structure – Space-saving design ideal for applications with limited radial clearance.

Without Inner Ring – Allows direct use of a hardened shaft, reducing overall bearing size.

Durable Construction – Made from heat-treated steel for strength, precision, and long life.

Smooth & Efficient Operation – Low friction ensures reduced heat and energy loss.

 Common Applications

Gearboxes & Transmissions

Hydraulic Pumps & Motors

Agricultural & Construction Equipment

Machine Tools & Robotics

Textile & Printing Machinery

Automotive & Industrial Power Systems

BEARING NA 6909 YFB – Needle Roller Bearing (Without Inner Ring)

The YFB NA 6909 is a high-performance needle roller bearing designed for compact applications requiring high radial load capacity and low rotational friction. Built without an inner ring, it is ideal for applications where the shaft can be hardened and ground as a rolling surface. Precision-manufactured from premium-quality bearing steel, this bearing ensures excellent wear resistance, smooth rotation, and long service life, even under demanding conditions.

Weight 0.560 kg
Dimensions 45 × 70 × 40 cm
