₨ 3,600
Availability: 8 in stock
| Specification | Value |
|---|---|
| Sleeve bore / inner diameter (d₁) | 44.45 mm (1 3⁄4 in) – fits a 1.75″ shaft. |
| Tapered seating outer diameter (d) | 50 mm – matches the bearing’s tapered bore. |
| Locknut outer diameter (d₂) | 70 mm – locknut seating diameter. |
| Sleeve length (B₁) | 42 mm – axial length of the adapter. |
| Distance bearing face to nut rear face (B₂) | 12 mm – typical spacing. |
| Thread designation (G) | M50 × 1.5 – locknut thread. |
| Taper ratio | 1:12 standard taper – industry standard fit for tapered-bore bearings. |
| Approx. Mass | ~0.29–0.30 kg – typical assembly weight. |
Reliable mounting: Provides secure & precise taper fit between the bearing and shaft without expensive shoulder machining.
Complete accessory: Typically used with a KM 10 locknut and MB 10 locking washer (ensures bearing won’t shift under load).
Easy installation/removal: Slit-style sleeve allows simple push into bearing bore and tightening of locknut.
Standard design: Conforms to common industry dimensions for inch-series adapter sleeves with metric hardware.

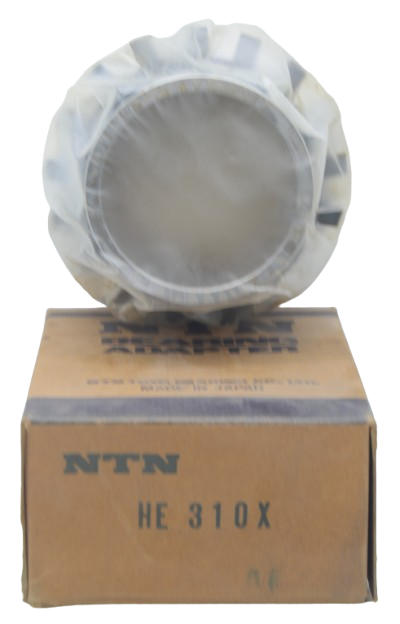

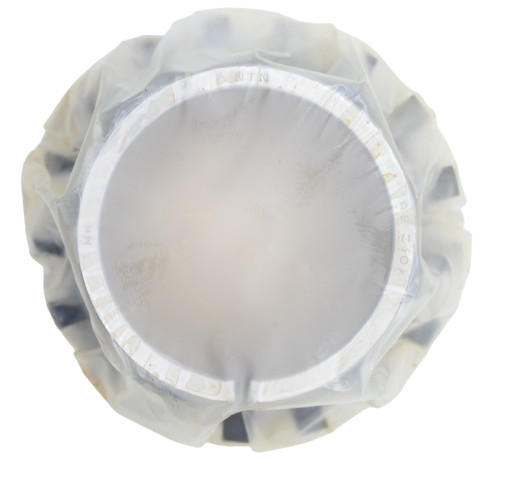

Product Name: Adapter Sleeve HE 310
Brand: NTN (bearing accessory for inch-series shafts)
Type: Adapter sleeve with locknut (KM 10) and locking washer (MB 10) included (typical)
Application: Used to mount tapered-bore bearings securely onto smooth or stepped shafts — allowing accurate axial location, easy assembly, and disassembly without machining shaft shoulders.
| Weight | 0.27 kg |
|---|---|
| Dimensions | 50 × 70 × 45 cm |
