₨ 8,500
Availability: 20 in stock
| Specification | Value |
|---|---|
| Shaft bore (d₁) | 63.5 mm (2 ½ in) – designed for 2.5″ shaft. |
| Tapered seating diameter (d) | 75 mm – matches bearing tapered bore. |
| Outer diameter (d₃) | 98 mm – accommodates the locknut. |
| Sleeve length (B₁) | 43 mm – axial length of the adapter. |
| Thread on sleeve (G) | M75 × 2 – thread for the locknut. |
| Locknut type | KM 15 – secures the sleeve. |
| Lock washer type | MB 15 – locking device for safety. |
| External taper ratio | 1:12 standard taper – ensures proper seating and easy removal. |
| Approximate weight | ~0.67 kg – typical assembly mass. |
Precision mounting: Provides a secure tapered fit between the bearing and shaft without needing extensive shaft machining.
Complete with accessories: Includes or is used with KM 15 locknut and MB 15 locking washer to lock the assembly in place.
Standard taper (1:12): Ensures reliable axial bearing location and simplifies removal.
Versatile use: Typically fitted to bearings with a tapered bore like 1215 K / 20215 K.

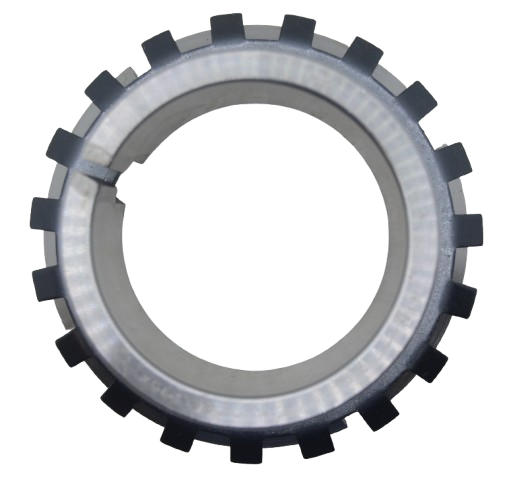

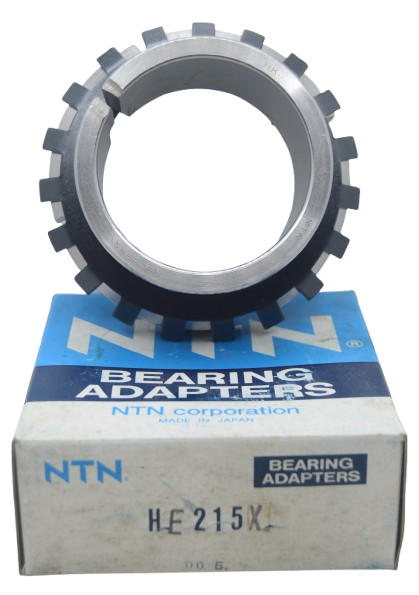

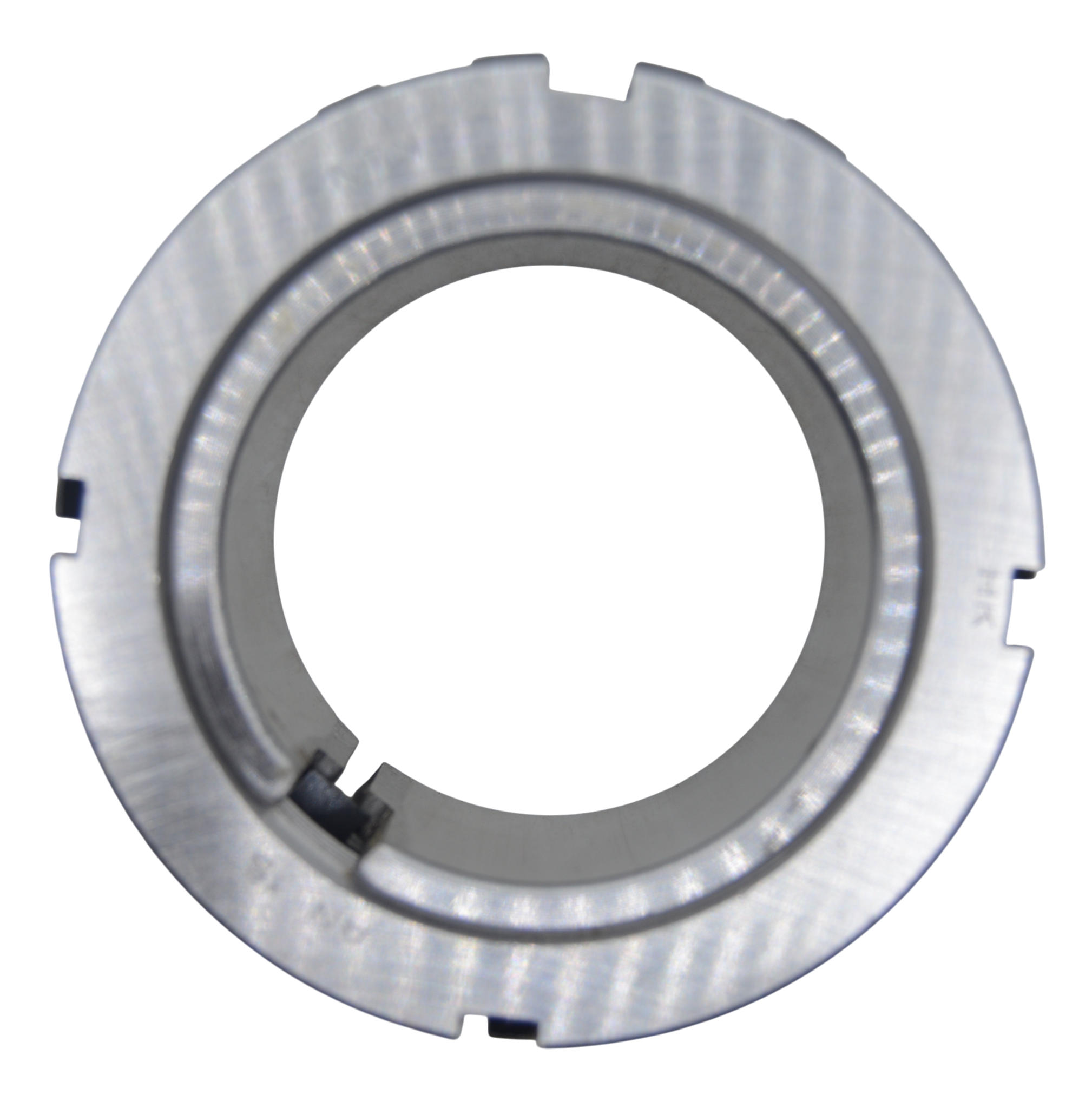

Product Name: Adapter Sleeve HE 215
Brand: NTN (Imperial-series bearing accessory)

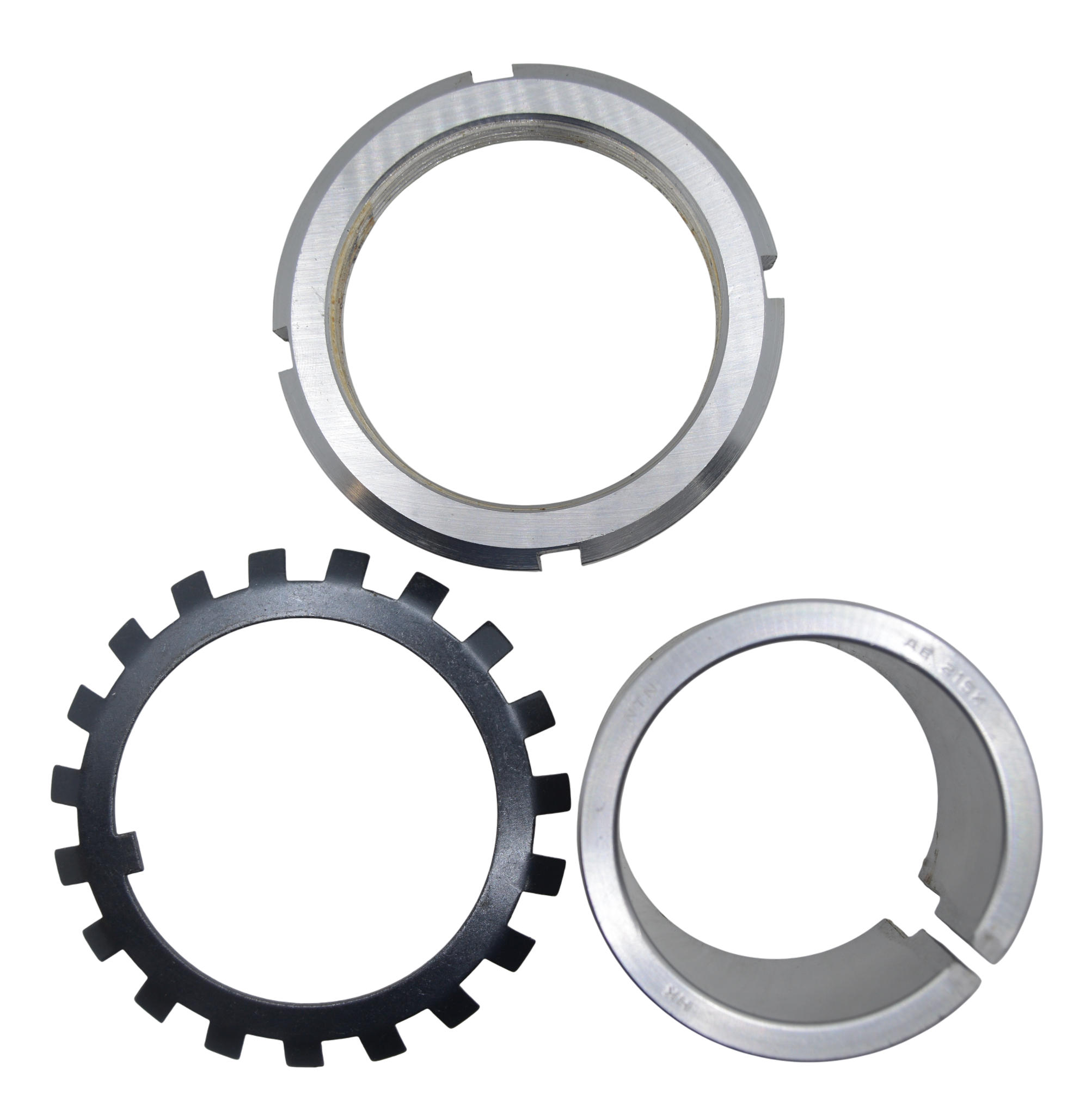

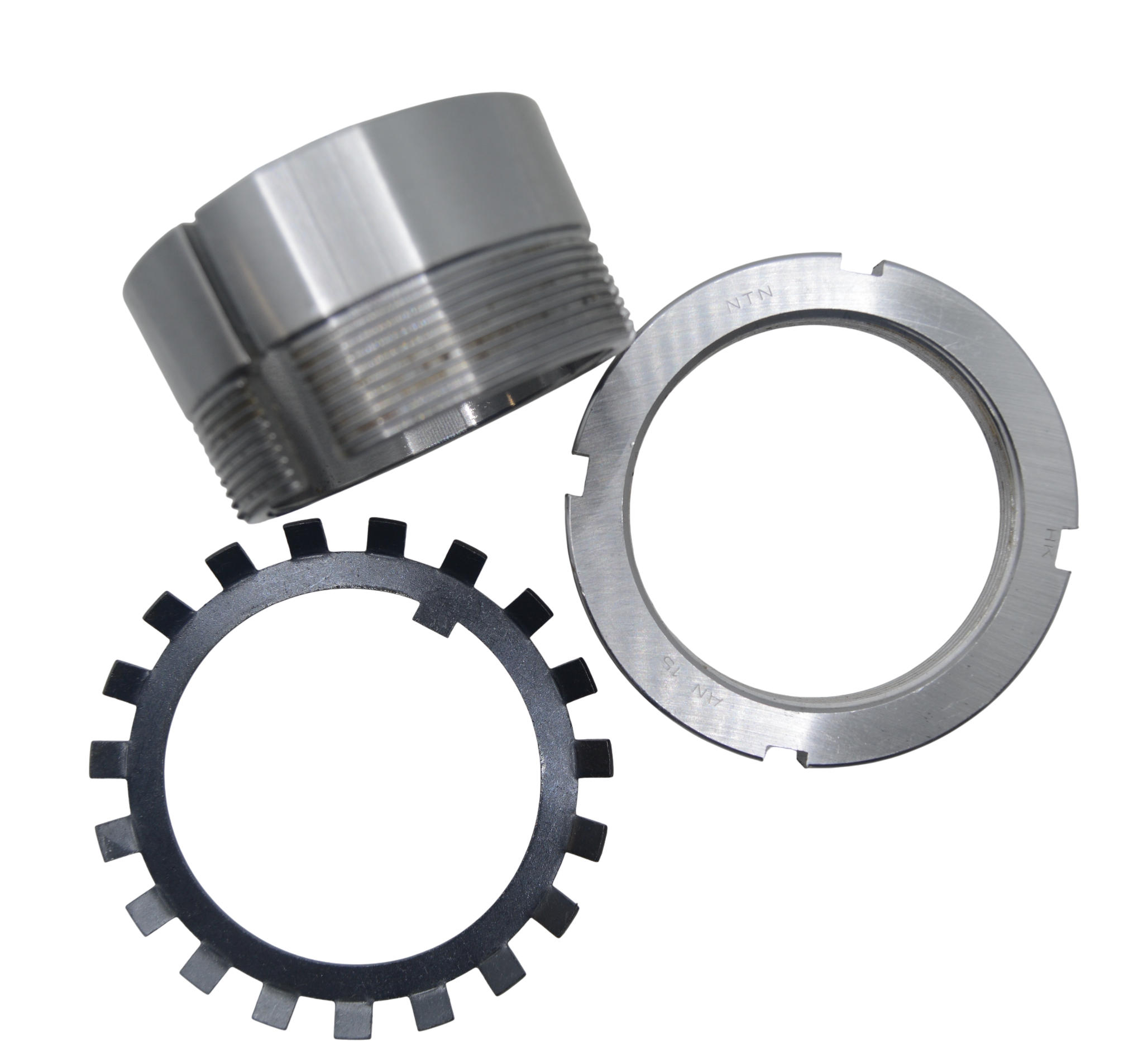

Type: Adapter sleeve supplied with locknut (KM 15) and locking washer (MB 15)
Application: Used to mount and secure tapered-bore bearings on smooth or stepped shafts without machining shoulders. Ideal for bearings like 1215 K and 20215 K that have a tapered inner bore.
| Weight | 0.66 kg |
|---|---|
| Dimensions | 75 × 98 × 45 cm |
