₨ 4,700
Availability: 14 in stock
| Specification | Value |
|---|---|
| Shaft bore / inner diameter (d₁) | 57.15 mm (2¼″) — ideal for 2¼″ shafts. |
| Bearing tapered-bore OD (d) | 65 mm — matches bearing tapered bore. |
| Sleeve length (B₁) | 40 mm — axial length of sleeve. |
| Outer locknut diameter (d₃) | 85 mm — locknut seating/outer diameter. |
| Thread designation (G) | M65 × 2 — for locknut. |
| Locknut type | KM 13 — matched locknut (typical). |
| Lock washer type | MB 13 — locking device for safety. |
| Taper ratio | 1:12 standard — ensures proper bearing seating. |
| Approx. weight | ~0.40–0.44 kg (depends on brand). |
Designed for imperial shafts: Specifically sized for 2¼″ (57.15 mm) shaft mounting.
Standard 1:12 taper: Provides accurate and secure taper-fit for bearings.
Threaded fastening: Uses M65×2 thread for reliable locknut engagement.
Locking accessories included: Often paired with KM 13 locknut and MB 13 locking washer to prevent loosening in operation.
Fits common bearing sizes: Works with bearing types such as 1213K and 20213K, among others with the correct taper size.

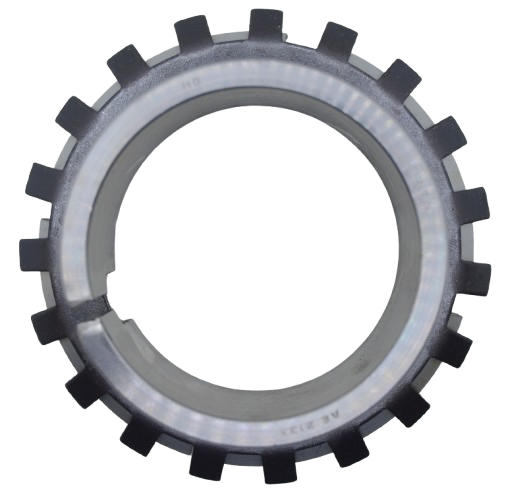

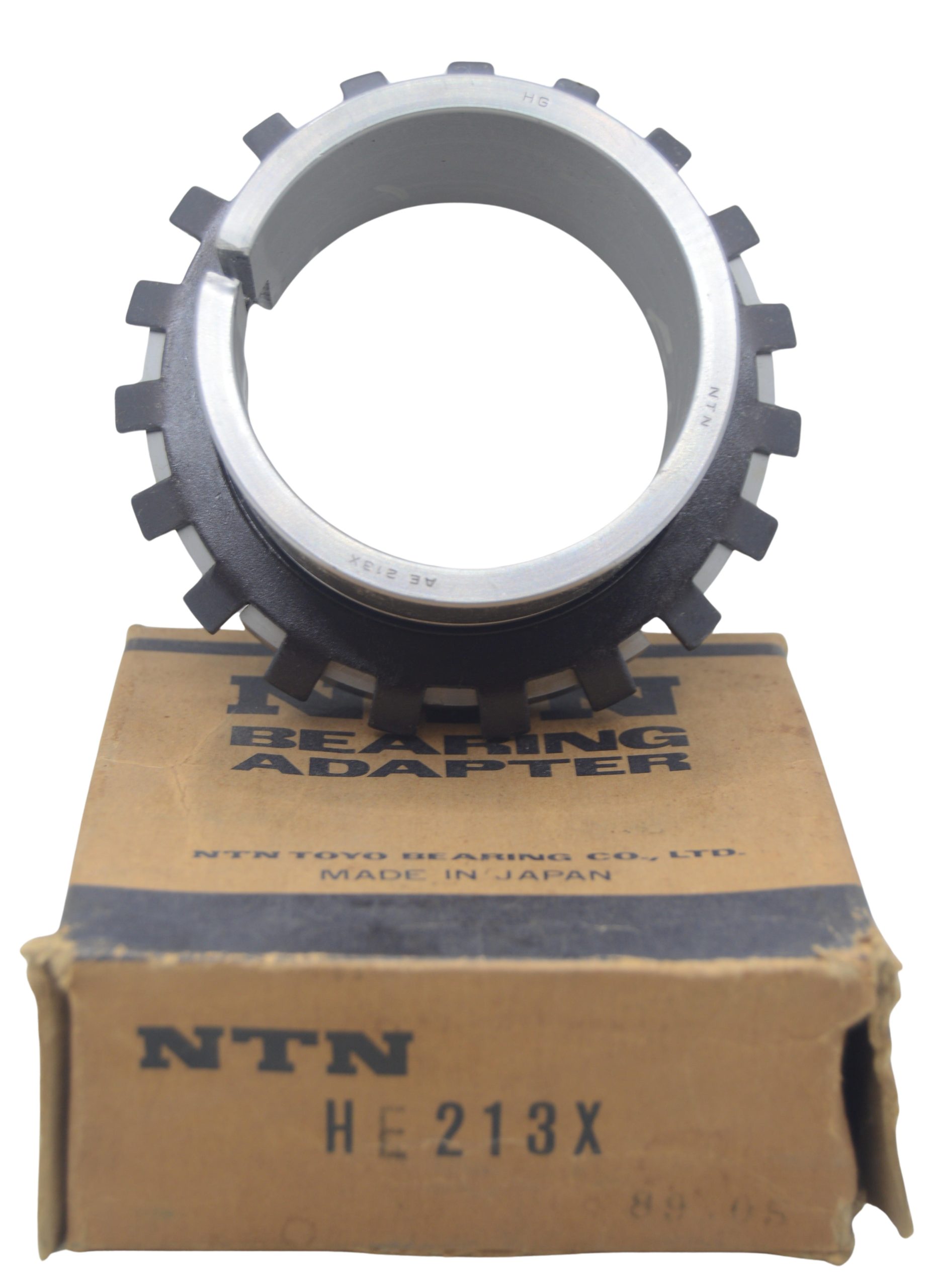

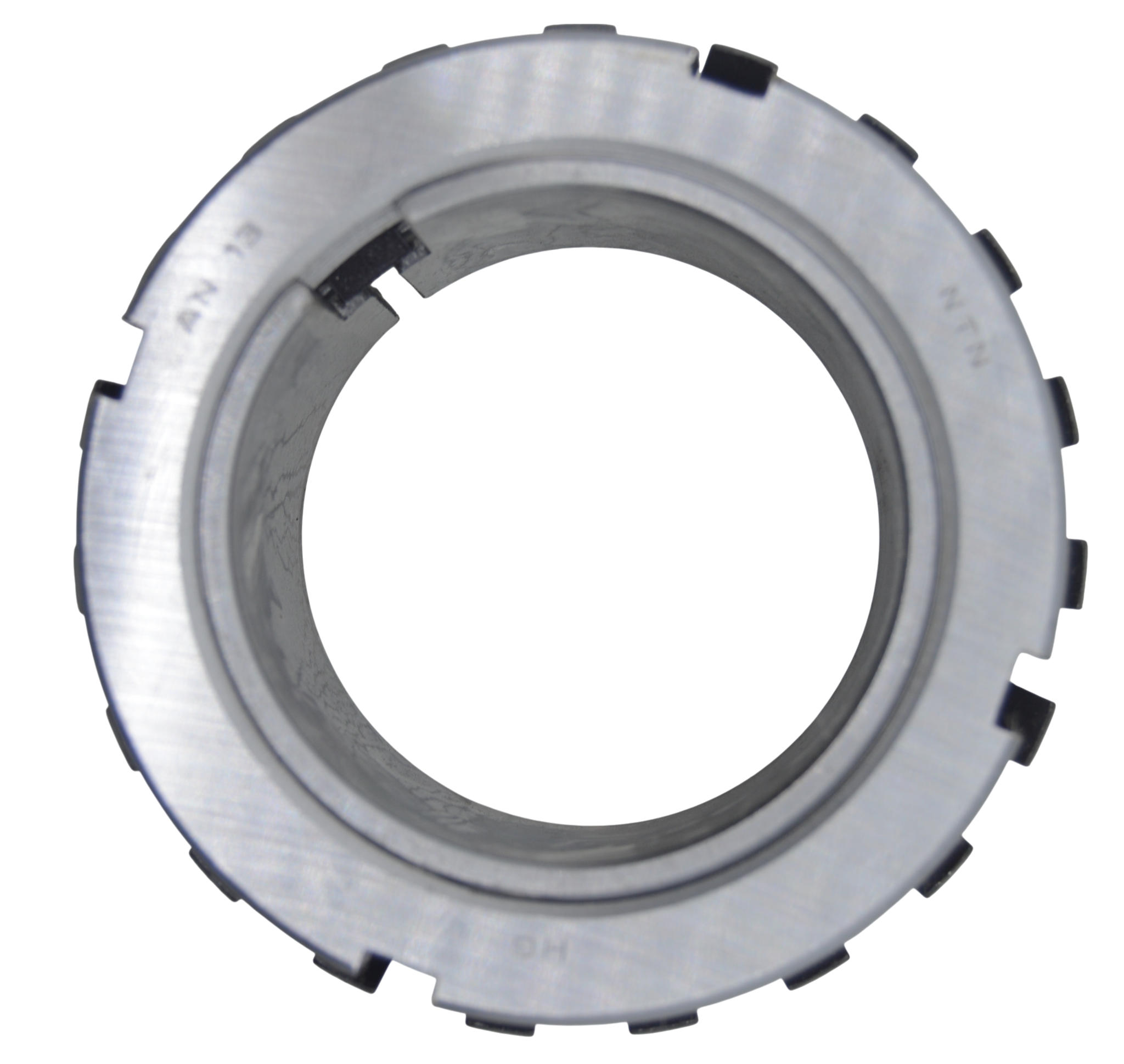

Product Name: Adapter Sleeve HE 213
Brand: NTN (bearing accessory, inch-series)

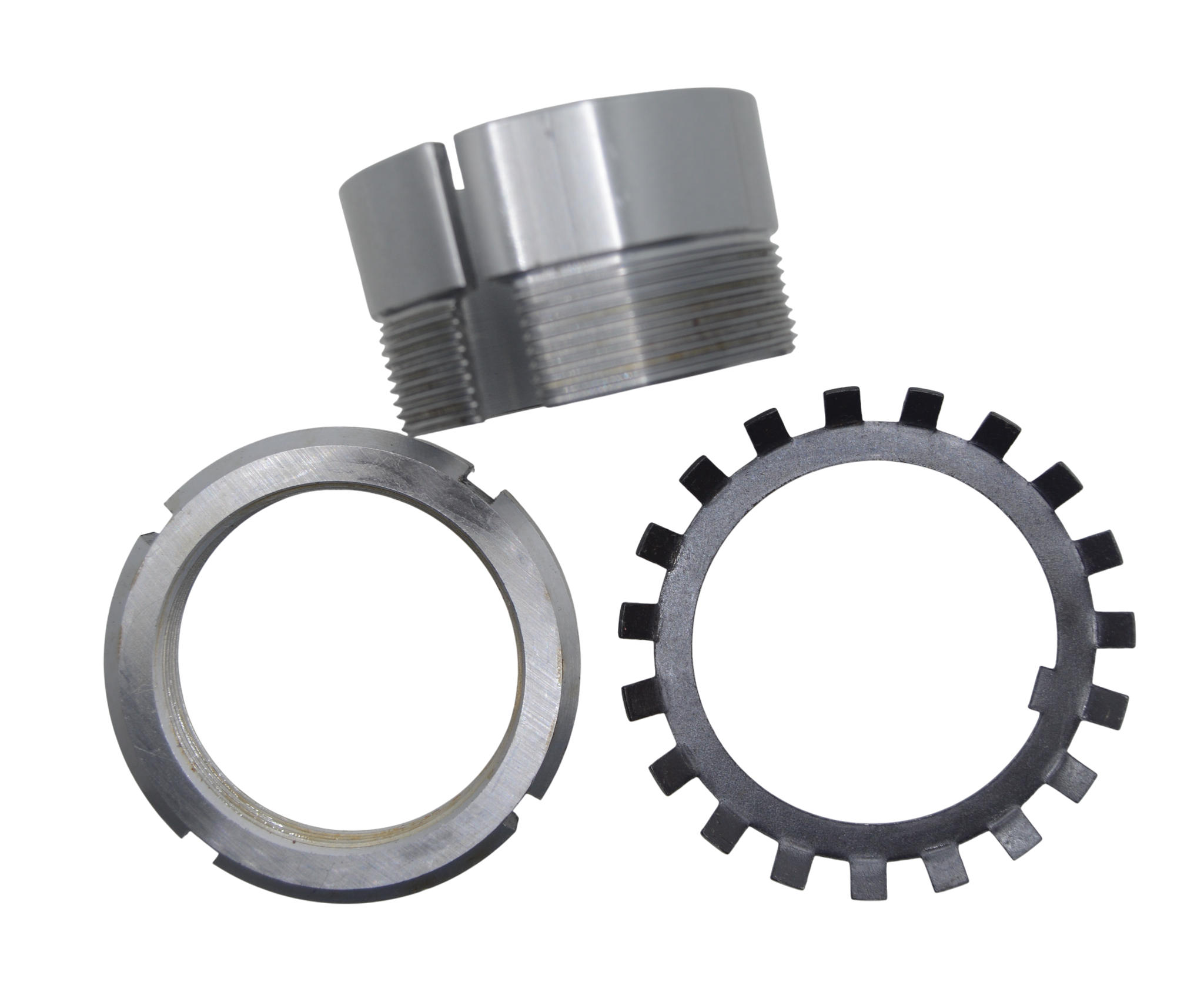

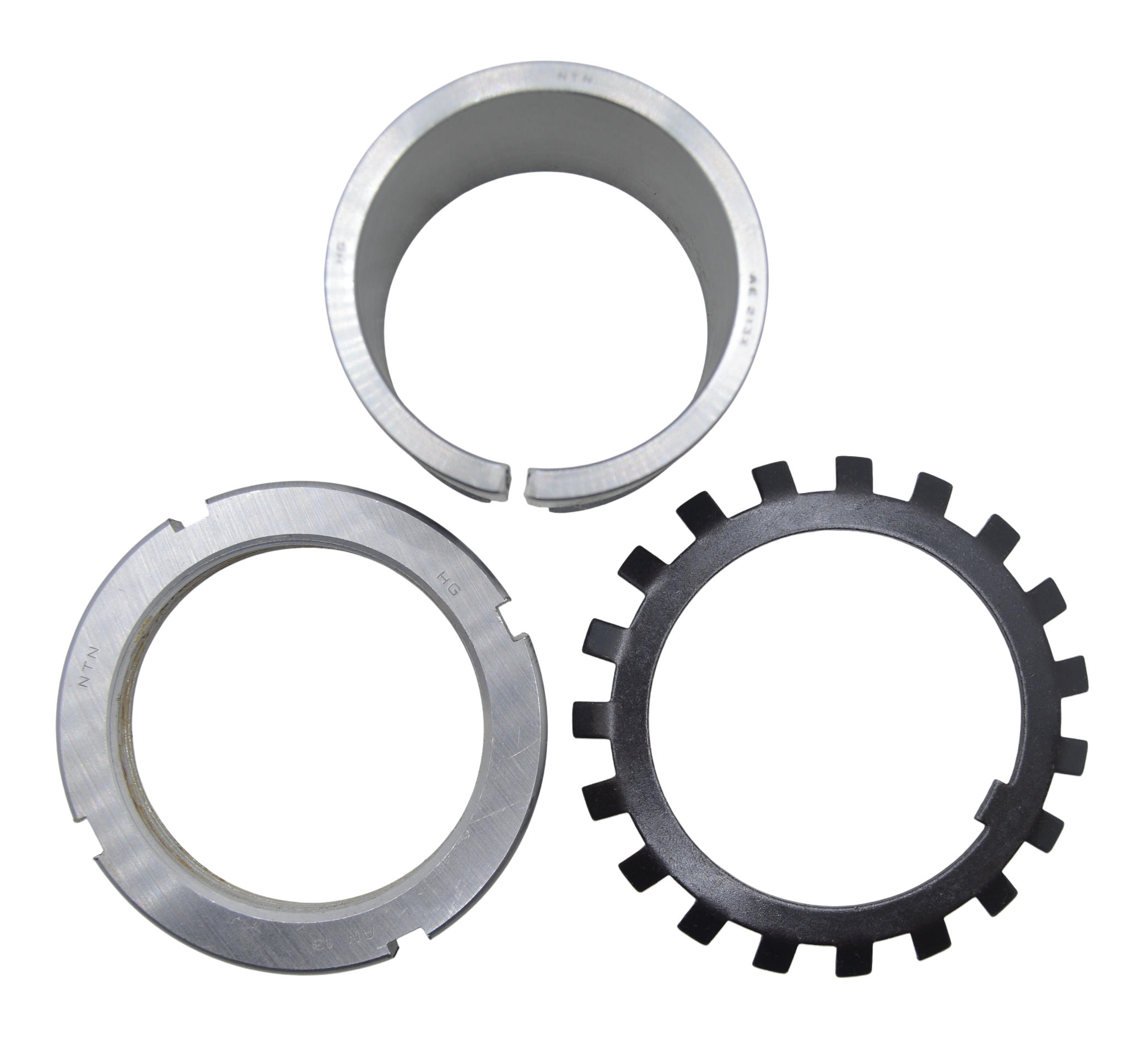

Type: Bearing adapter sleeve with locknut and locking washer
Application:
Designed to mount tapered-bore bearings (e.g., 1213K / 20213K) onto 2¼″ (57.15 mm) diameter shafts. Provides secure axial positioning and easy installation/removal of bearings without needing shaft shoulders or steps.
| Weight | 0.36 kg |
|---|---|
| Dimensions | 65 × 85 × 40 cm |
