₨ 3,500
Availability: 59 in stock
| Specification | Proper Value |
|---|---|
| Shaft bore / Inner diameter (d₁) | 44.45 mm (1 ¾ in) — fits the shaft. |
| Small taper outer diameter (d) | 50 mm — outer taper surface to match bearing tapered bore. |
| Outer diameter of locknut (d₂) | 70 mm — size for locknut seating. |
| Sleeve length / Width (B₁) | 35 mm — axial length of the adapter sleeve. |
| Locknut width including washer (B₂) | ≈12 mm — thickness of nut + washer. |
| Thread on sleeve (G) | M50 × 1.5 — thread for locknut. |
| External taper ratio | 1:12 standard — ensures proper fit. |
| Approximate Weight | ≈0.27–0.28 kg (varies by supplier). |
Precise fit on 1⅗″ / 1¾″ shafts: Designed for Imperial shaft diameters ≈ 44.45 mm.
Standard taper (1:12): Provides reliable bearing seating and easy disassembly.
Threaded locking: Uses M50×1.5 thread with compatible KM10 locknut and MB10 locking washer to secure assembly.
Versatile use: Suited to bearings like 1210 K / 20210 K and similar tapered bore bearings.

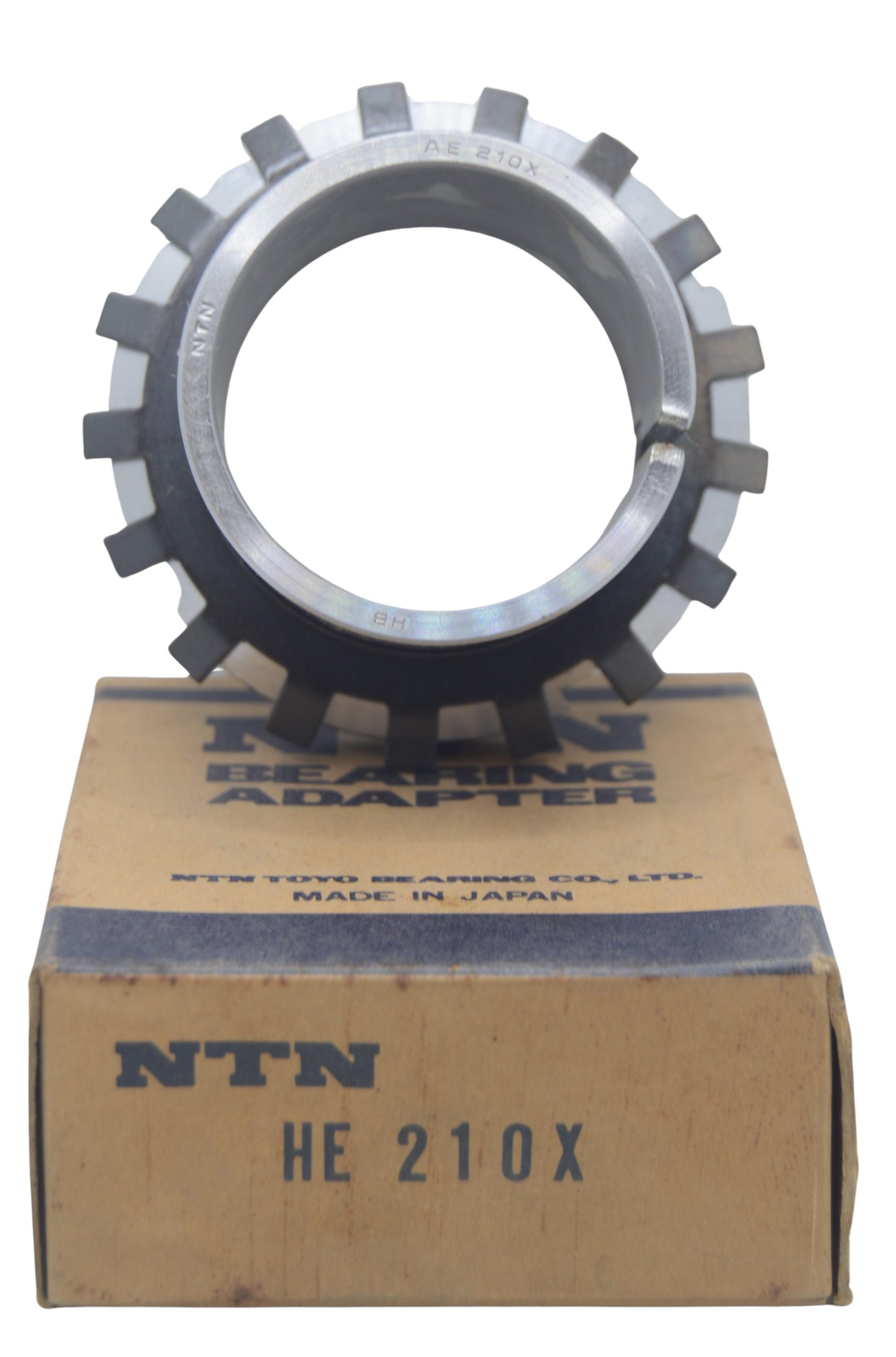

Product Name: Adapter Sleeve HE 210
Brand: NTN (bearing accessory for Imperial shaft applications)

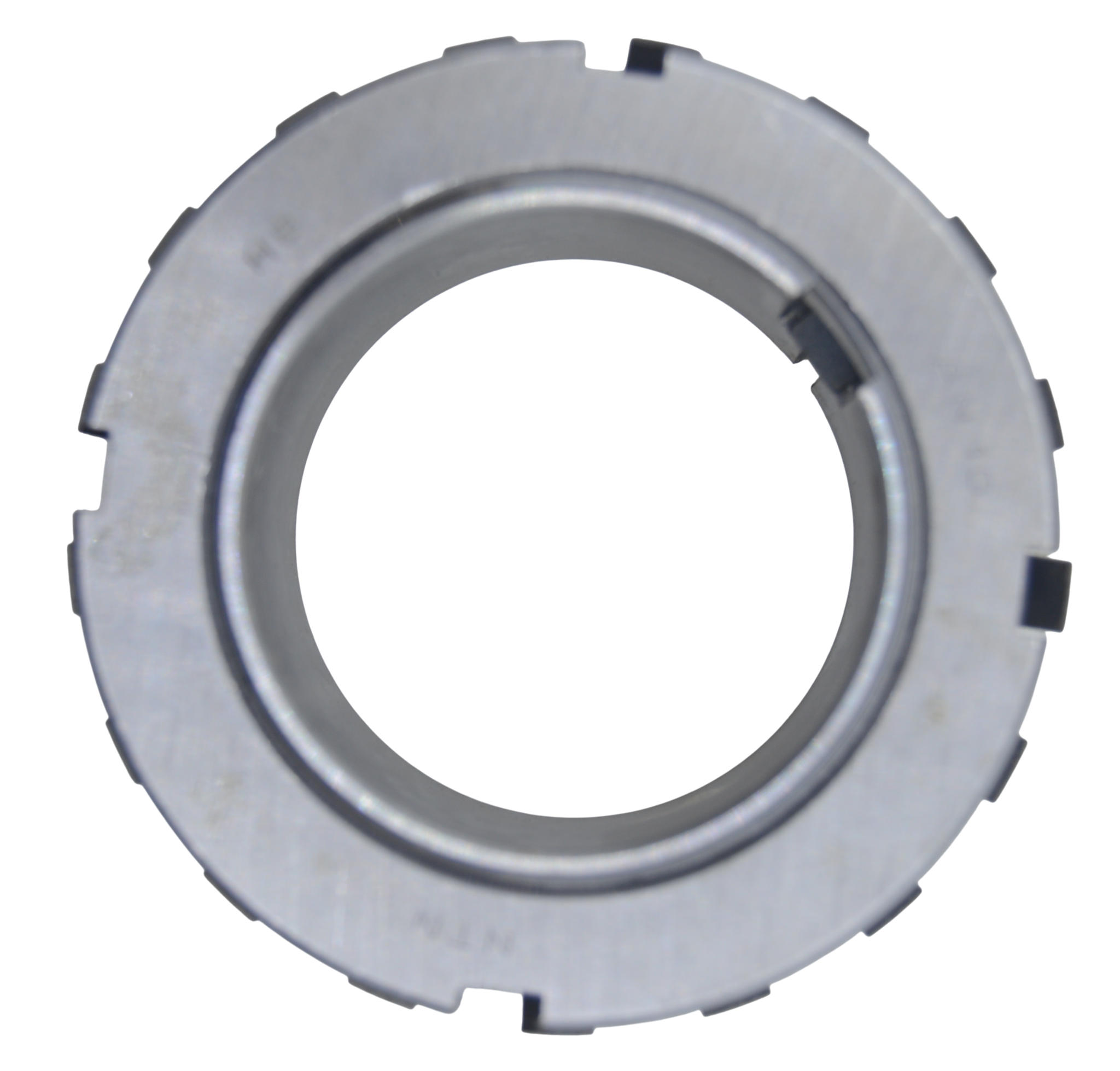

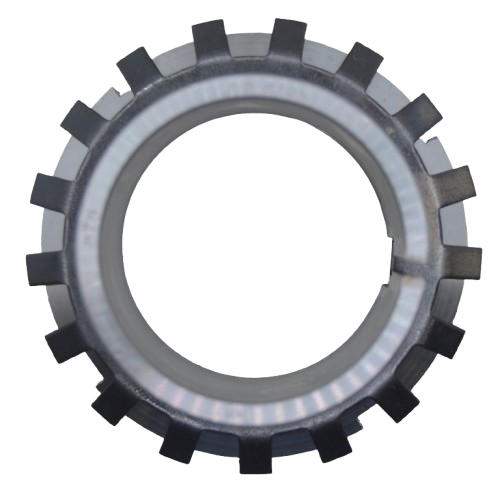

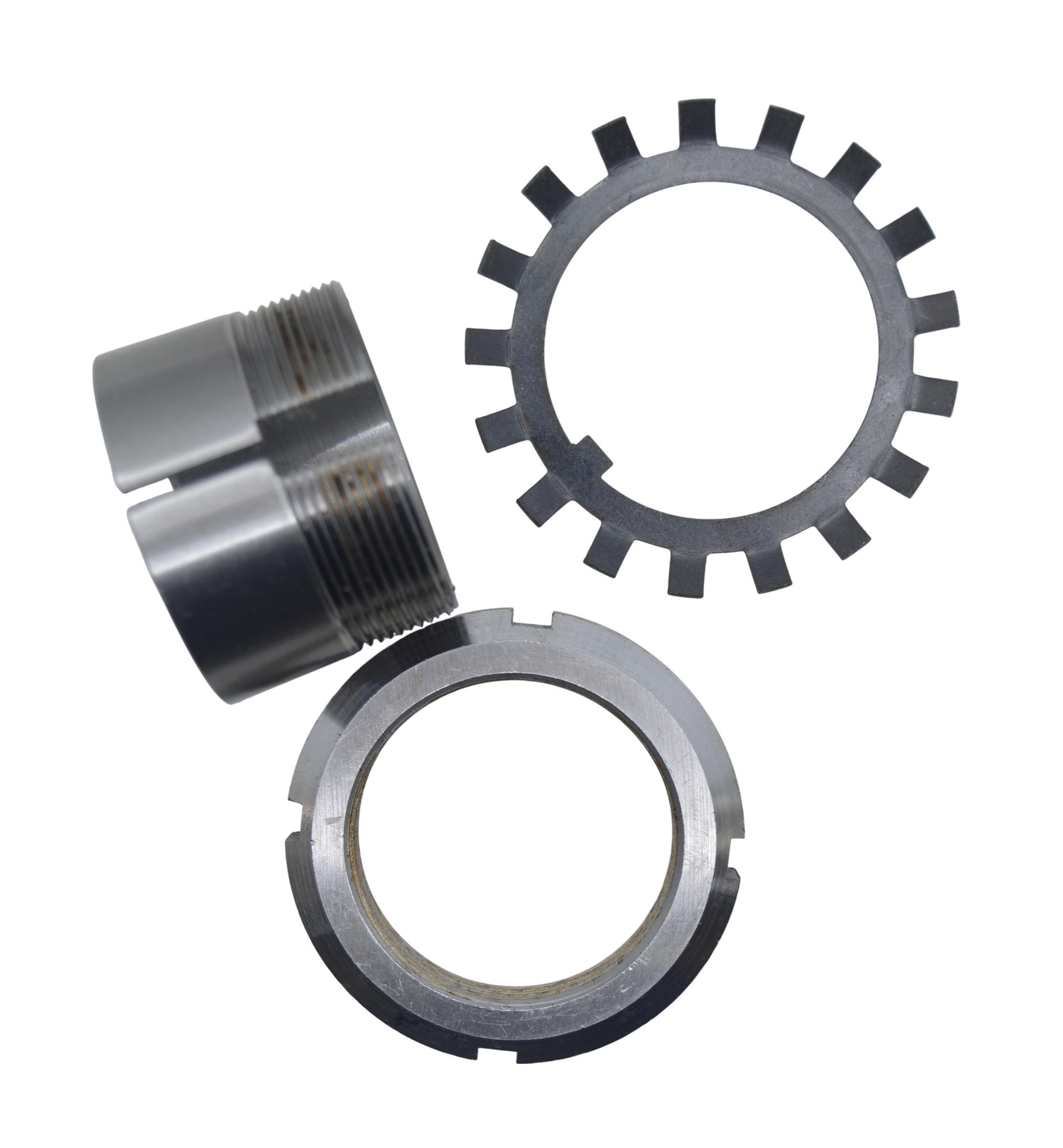

Type: Adapter sleeve with locknut and locking washer used for mounting tapered-bore bearings on smooth or stepped shafts.
Use: Provides secure axial positioning and easy installation/dismounting of bearings with tapered inner bores (e.g., 1210 K / 20210 K) on shafts around 1¾″ (44.45 mm) diameter.
| Weight | 0.24 kg |
|---|---|
| Dimensions | 50 × 70 × 35 cm |
