₨ 2,640
Availability: 138 in stock
| Specification | Value |
|---|---|
| Sleeve bore diameter (d₁) | ≈19.05 mm (~¾ in) – fits a 19.05 mm shaft (inch‑series) |
| Internal (taper) diameter (d) | 25 mm – matches bearing tapered bore |
| Sleeve length B1B₁ | 26 mm – axial length of the sleeve |
| Outer diameter (nut seat) d2d₂ | 38 mm – locknut outer diameter |
| Thread on sleeve GG | M25 × 1.5 – thread for locknut |
| Conicity / Taper ratio | 1:12 standard taper |
| Typical Weight | ~0.07 kg (approx.) |
| Locknut / Washer | KM5 locknut + MB5 locking washer (used together) |
Precise fit: Designed to fit on a ¾″ (≈19.05 mm) shaft and provide a tapered seat for bearings with a 25 mm tapered bore.
Standard taper (1:12): Ensures secure bearing location and easy disassembly.
Complete accessory: Used with KM5 locknut and MB5 washer to lock the sleeve and bearing in place.
Industrial use: Commonly used in machinery, drives, and mechanical systems where bearings must be mounted precisely without shoulder machining on shafts.
1205 K
20205 K

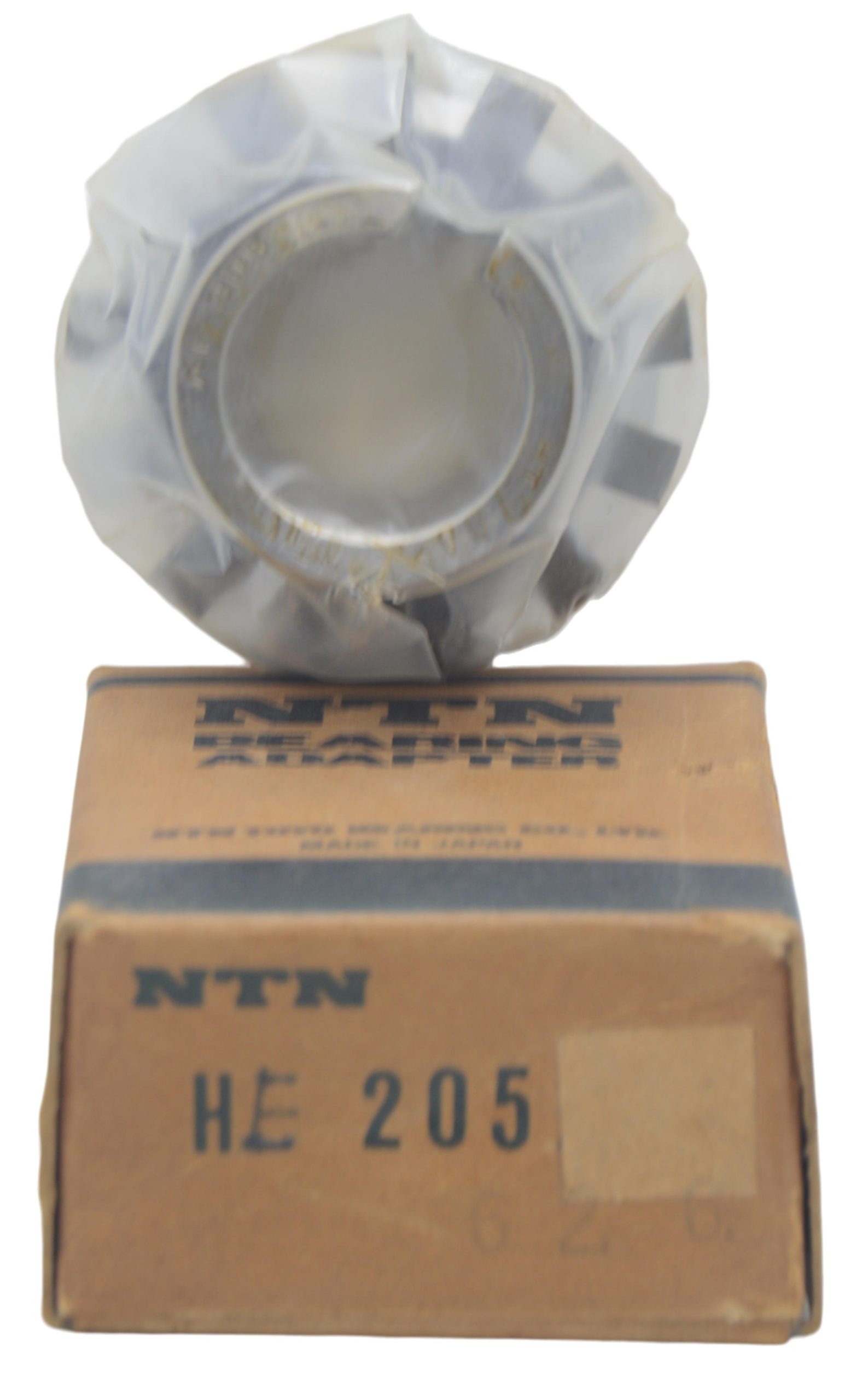

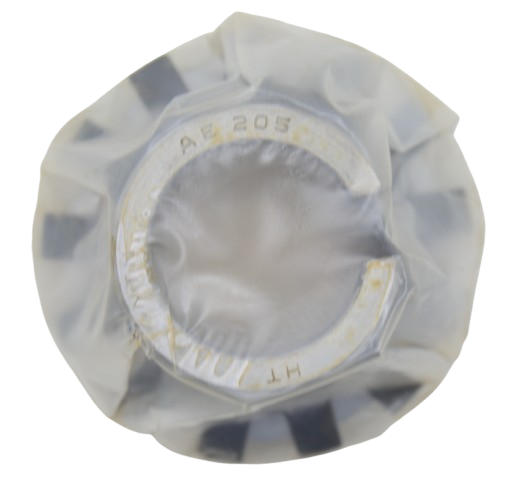

Product Name: Adapter Sleeve HE 205 (NTN / Metric accessory)
Type: Adapter sleeve with locknut and locking washer
Application: Used for mounting tapered‑bore bearings (e.g., 1205 K, 20205 K) on smooth or lightly stepped shafts. It enables precise axial positioning and easy assembly/removal of bearings with a 1:12 tapered bore.
| Weight | 0.064 kg |
|---|---|
| Dimensions | 25 × 40 × 26 cm |
