₨ 2,250
Availability: 10 in stock
| Specification | Standard Size |
|---|---|
| Sleeve bore diameter (d₁) | 20 mm — for a 20 mm shaft. |
| Taper outer diameter (d) | 25 mm — mating the bearing’s tapered bore. |
| Outer diameter locknut seat (d₂) | ≈38 mm — size for locknut (KM 5). |
| Sleeve length (B₁ / L) | 29 mm — body axial length. |
| Locknut width including washer (B₂ / c) | ≈8 mm — thickness of the fastening kit. |
| Thread size (G) | M25 × 1.5 — thread on sleeve for locknut. |
| Locknut type | KM 5 — recommended locknut. |
| Lock washer type | MB 5 — included. |
| Taper ratio | 1:12 standard external taper — for proper bearing fit. |
| Approx. Weight | ~0.07–0.08 kg (varies by manufacturer). |
Secure mounting: Provides reliable fixation of bearings with tapered bores onto cylindrical shafts.

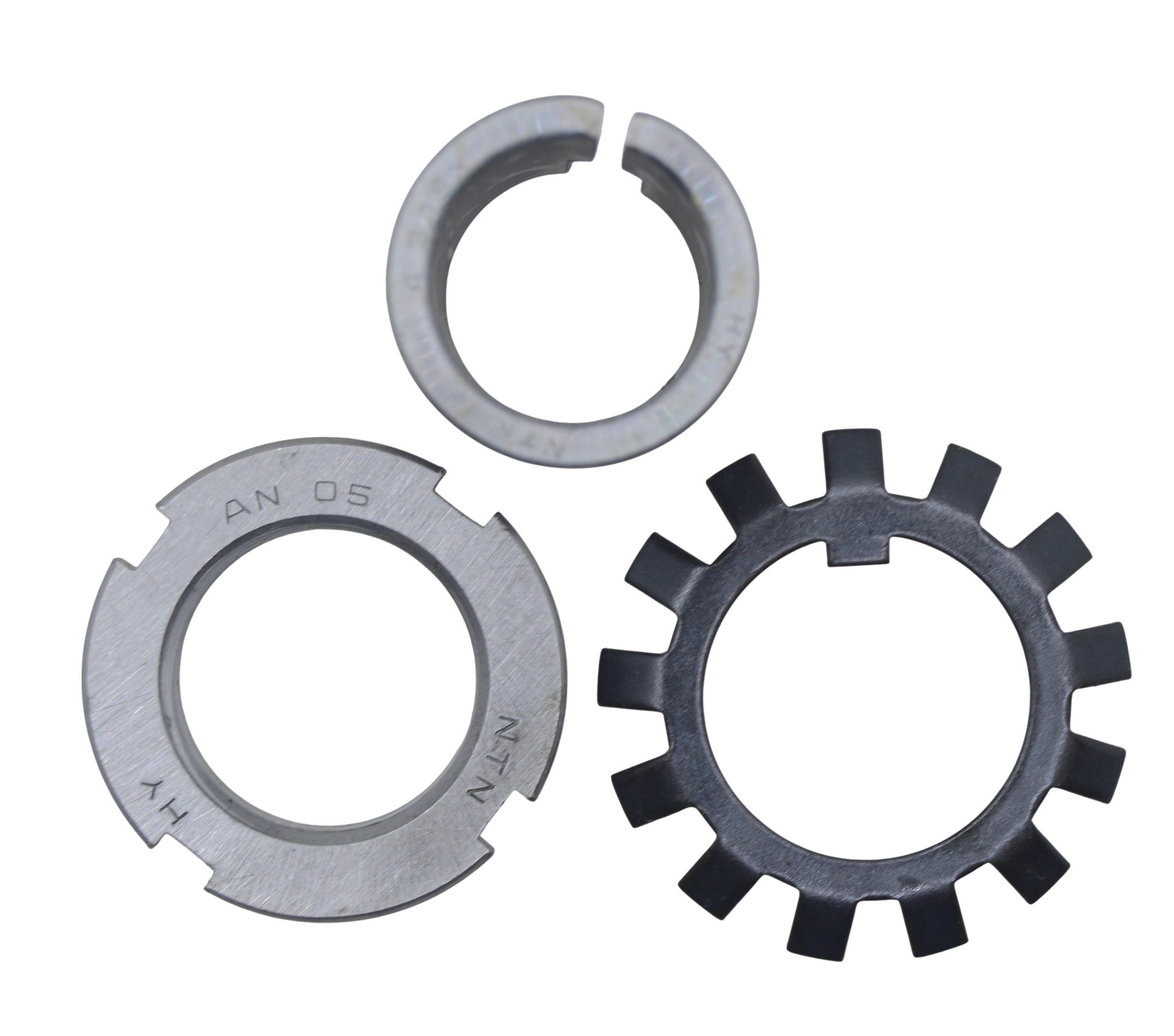

Includes fastening kit: Typically supplied or fitted with a KM 5 locknut and MB 5 locking washer for secure installation.
Precision taper: Standard 1:12 taper ensures proper seating and ease of dismounting.
Universal fit: Works with metric bearings designed around the H 305 adapter sleeve standard.

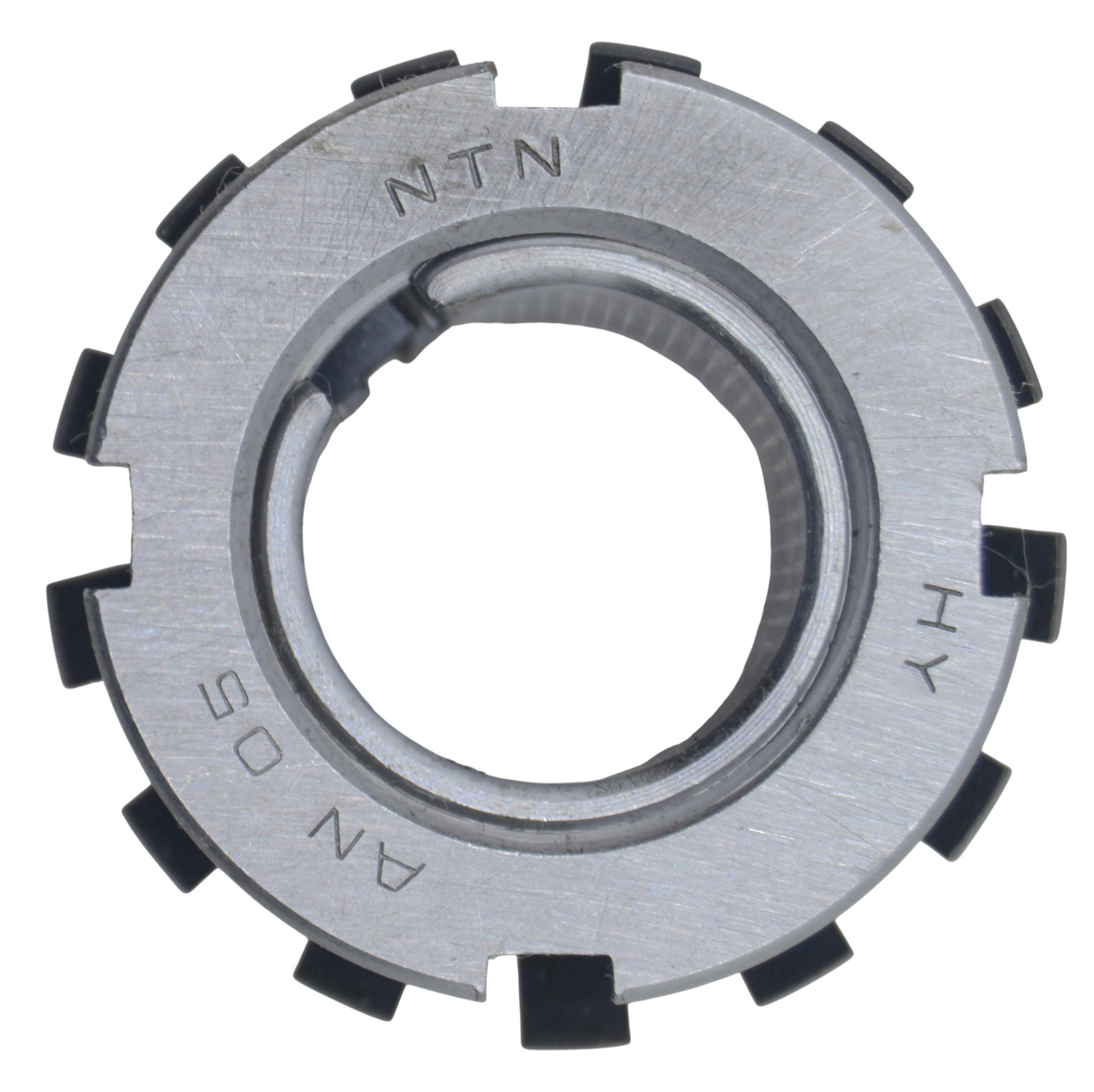

Product Name: Adapter Sleeve H 305
Brand: NTN (metric bearing accessory)
Type: Bearing adapter sleeve with locknut and locking washer
Purpose: Used to mount tapered-bore bearings (e.g., 2205 K / 1305 K / 20305 K / 22205 K and similar sizes) onto a smooth or stepped cylindrical shaft with precise axial location and easy assembly/removal.
| Weight | 0.071 kg |
|---|---|
| Dimensions | 25 × 40 × 26 cm |
