₨ 3,060
Availability: 10 in stock
| Specification | Value |
|---|---|
| Shaft bore (inner diameter) | 25 mm — fits a 25 mm shaft |
| Tapered outer diameter (small end, d) | ≈30 mm — corresponds to bearing tapered bore |
| Sleeve length (B₁ / L) | 38 mm — axial length of adapter sleeve |
| Thread size (G) | M30 × 1.5 — thread for locknut on sleeve |
| Locknut outer diameter (d₂) | ≈45 mm — locknut seating diameter |
| Locknut type | KM6 — compatible locking nut |
| Lock washer type | MB6 — locking device |
| Taper ratio | 1:12 standard external taper — industry standard taper |
| Approx. Weight | ~0.12–0.18 kg depending on manufacturer |
Reliable Bearing Mounting: Provides secure and precise axial fixation of tapered‑bore bearings on smooth or stepped shafts.
Easy Installation & Removal: Standard 1:12 taper and threaded locknut system simplify assembly and maintenance.
Includes Locking Accessories: Designed for use with KM6 locknut and MB6 locking washer to prevent loosening in operation.
Wide Industrial Use: Commonly used with bearings like 2306 K series — suitable for motors, gearboxes, conveyors, and a variety of machinery.

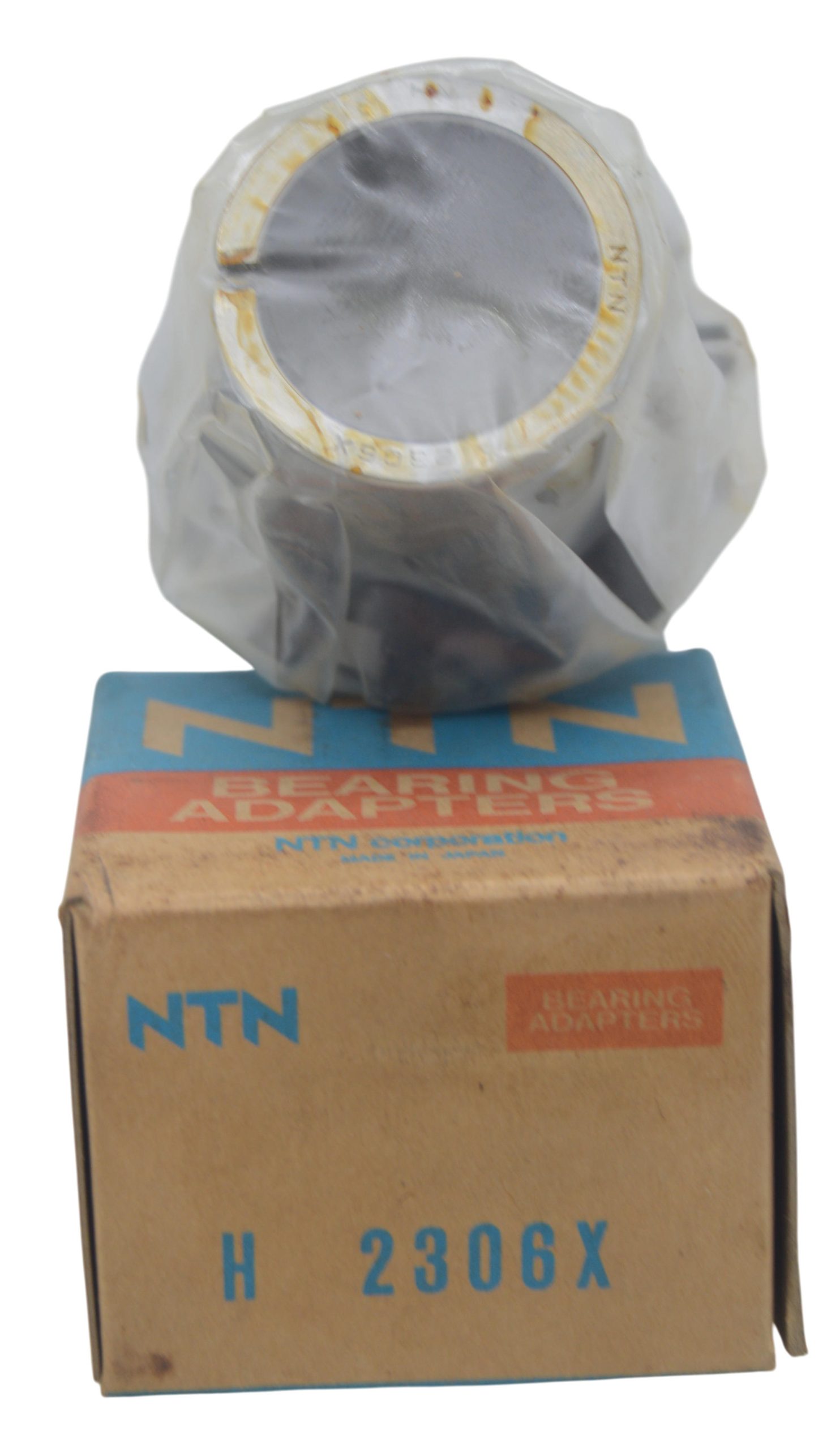

Product Name: Adapter Sleeve H 2306 (NTN / Metric)
Type: Bearing adapter sleeve with locknut and locking washer
Purpose:
A precision tapered adapter sleeve used to mount and securely lock tapered‑bore bearings onto cylindrical shafts. It allows accurate axial positioning of bearings, simplifies assembly/removal, and avoids the need for extensive shaft machining.
| Weight | 0.11 kg |
|---|---|
| Dimensions | 30 × 45 × 40 cm |
