₨ 12,000
Availability: 4 in stock
| Specification | Value |
|---|---|
| Sleeve bore diameter (d₁) | 90 mm — fits a 90 mm shaft. |
| Internal (taper) outer diameter (d) | 100 mm — matches bearing tapered bore. |
| Outer diameter of locknut (d₂) | 130 mm — for the locknut seating. |
| Sleeve length (B₁) | 58 mm — longitudinal length of adapter sleeve. |
| Thread size (G) | M100 × 2 — thread on sleeve for locknut. |
| Locknut type | KM20 — included/compatible. |
| Lock washer type | MB20 — included/compatible. |
| Taper ratio | 1:12 standard external taper — for proper bearing fit. |
| Approx. Weight | ~1.4 – 1.6 kg (varies by brand). |
High-precision mounting of tapered-bore bearings on cylindrical shafts.
Robust threading and taper ensure secure positioning and reliable performance.
Includes or matched with KM20 locknut and MB20 washer for secure locking.
Compatible with standard metric tapered bearings such as 1220K / 20220K seri

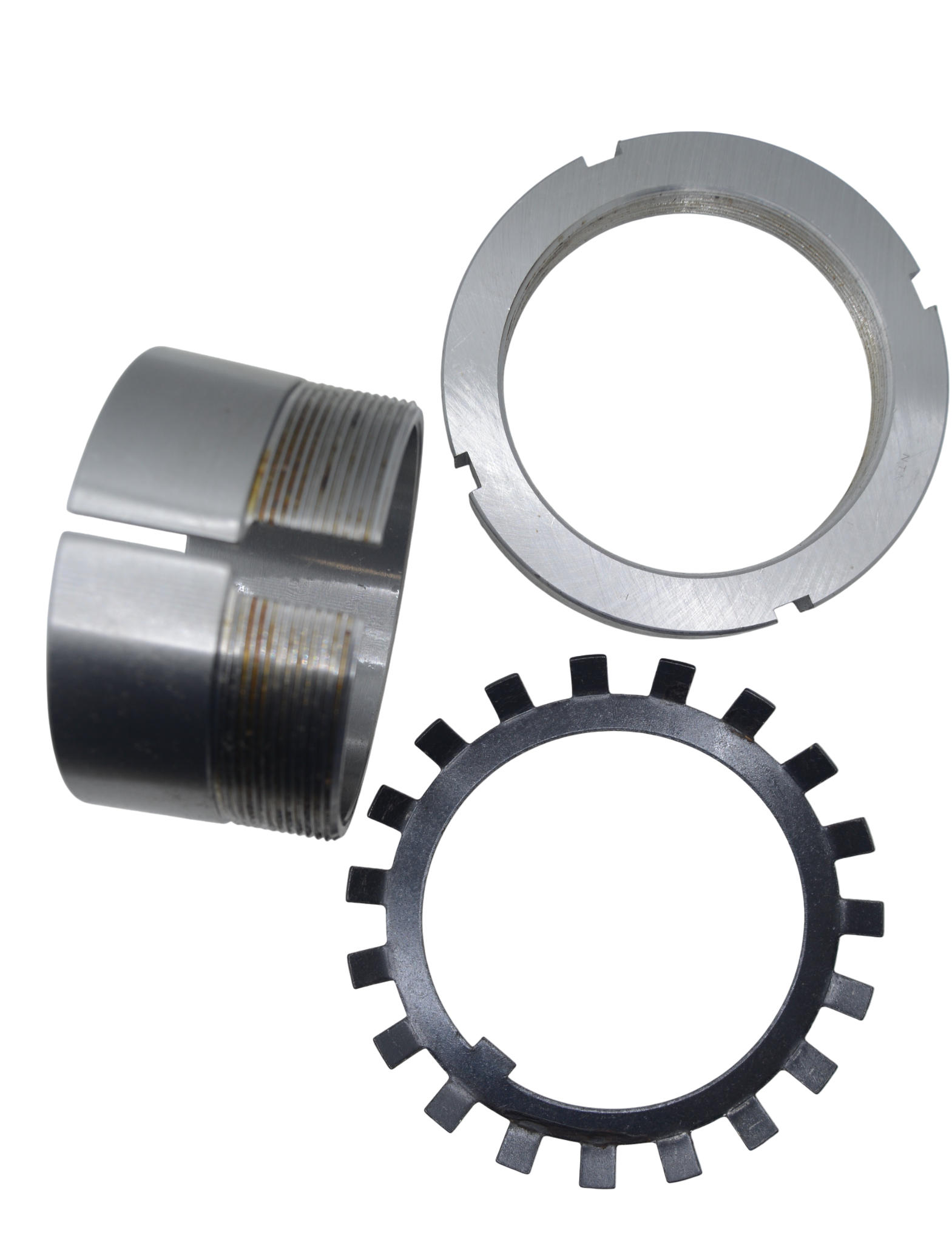

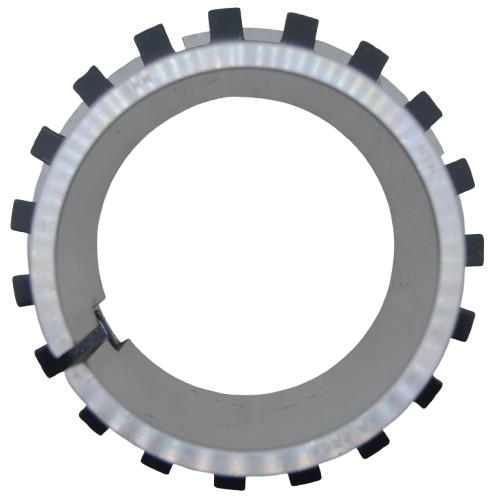

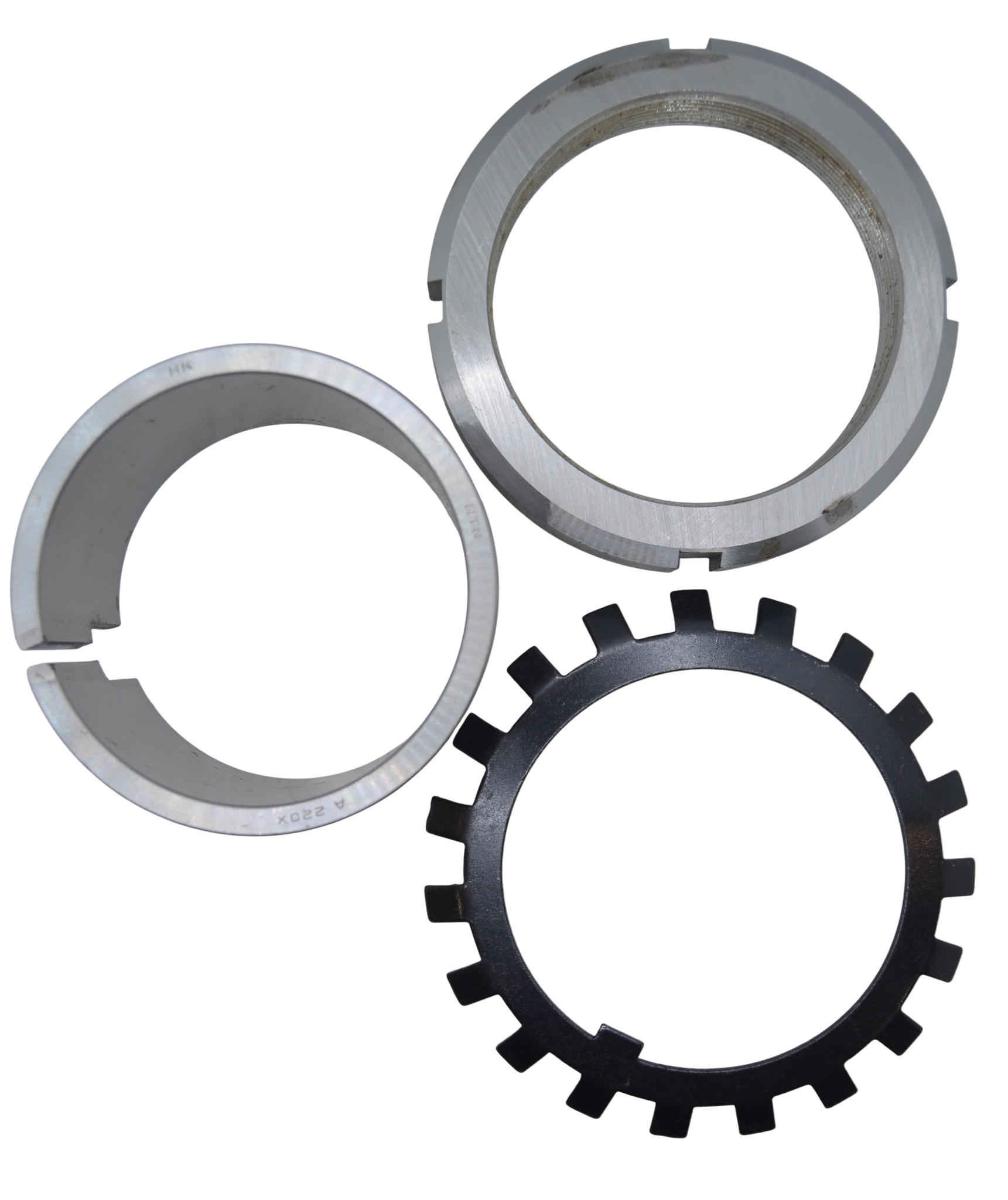

Product Name: Adapter Sleeve H 220 (NTN / Metric)
Type: Bearing adapter sleeve for tapered-bore bearings
Application: Used to mount and fix bearings with a tapered inner bore (e.g., 1220 K, 20220 K, etc.) on smooth or stepped shafts. Adapter sleeves allow precise positioning and easier installation/removal of bearings.
| Weight | 1.40 kg |
|---|---|
| Dimensions | 100 × 130 × 60 cm |
