₨ 800
Availability: 11 in stock
| Specification | Value |
|---|---|
| Shaft bore diameter (d₁) | 35 mm — fits a 35 mm diameter shaft |
| Bearing inner diameter seating (d) | 40 mm — taper outer diameter for bearing fit |
| Sleeve length (B₁ / L) | 31 mm — total longitudinal sleeve length |
| Outer sleeve diameter (Nut seating) | ≈58 mm — locknut seating outer diameter |
| Thread size (G) | M40 × 1.5 — cast thread for locknut |
| Locknut type | KM8 — recommended locknut |
| Lock washer type | MB8 — locking device for secure fit |
| Approx. Weight | ~0.15–0.18 kg (varies by manufacturer) |
| Taper ratio | 1:12 standard taper on inner bore |
Designed to mount tapered-bore bearings (e.g., 1208K, 20208K, 1308K, 22208K) on a smooth or stepped 35 mm shaft.
Typically supplied complete with locknut (KM8) and locking washer (MB8) for secure installation.
Conforms to standard metric adapter sleeve dimensions (ISO / DIN style).
Provides reliable axial positioning and easy removal of bearings.

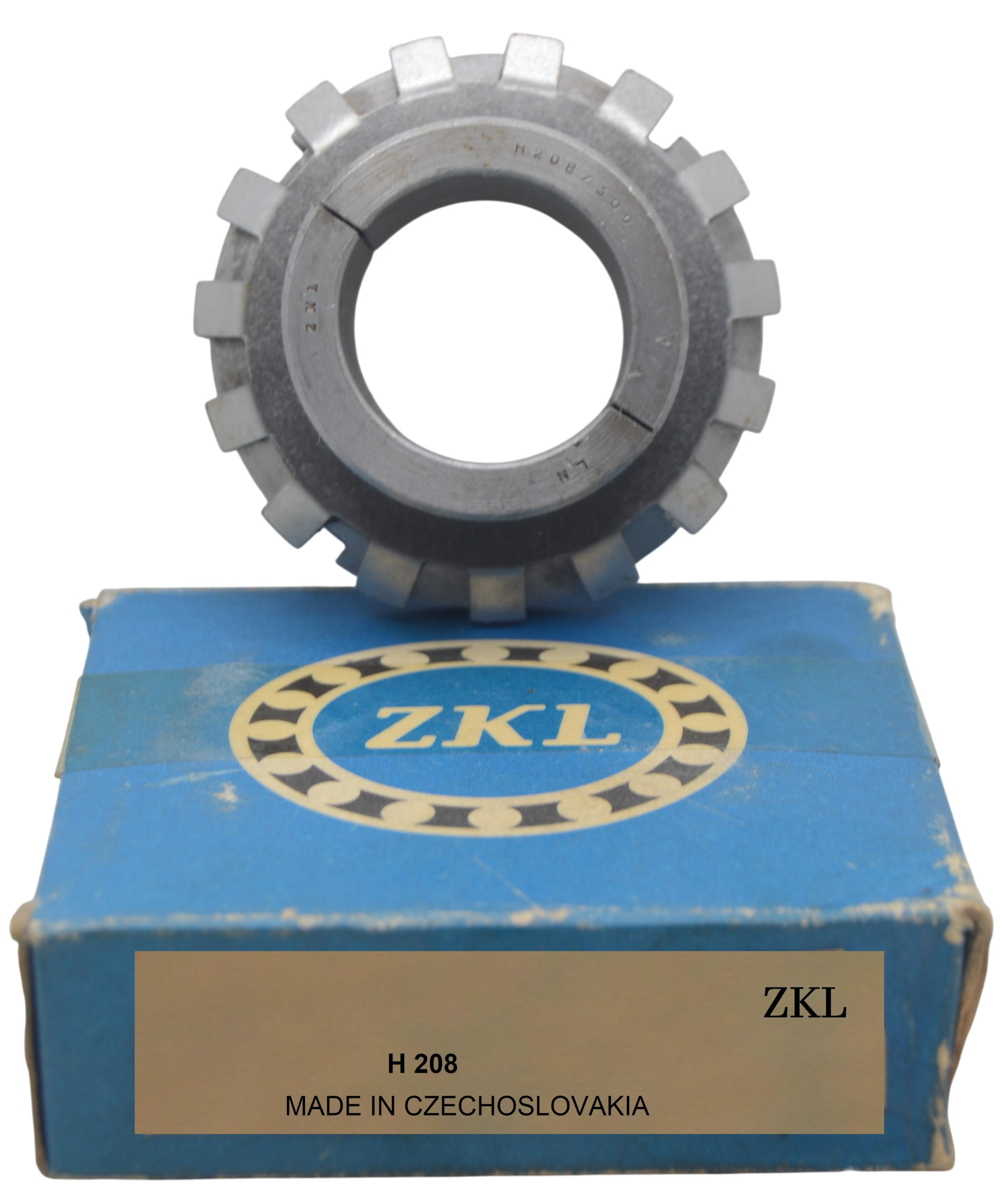

Product Name: Adapter Sleeve H 208 (Metric, ZKL Standard)
Type: Bearing Adapter Sleeve (H-series)
Application: Used for mounting and fixing bearings with a tapered inner bore securely on a cylindrical shaft. Suitable for plain or stepped shafts, easing mounting/dismounting and accurate positioning of bearings.
| Weight | 0.16 kg |
|---|---|
| Dimensions | 40 × 60 × 35 cm |
