₨ 2,500
Availability: 2 in stock
| Specification | Value |
|---|---|
| Shaft bore diameter (d₁) | 35 mm – for a 35 mm shaft |
| Small taper outer diameter (for bearing bore) | 40 mm |
| Outer diameter (sleeve + nut seating) | 58 mm |
| Sleeve length (B₁) | 31 mm |
| Thread size (G) | M40 × 1.5 – for the locknut |
| Locknut type | KM 8 – supplied and used with sleeve |
| Lock washer type | MB 8 – included locking device |
| Taper ratio | 1:12 standard taper |
| Material | High-strength steel (industrial) |
| Weight | ~0.16 – 0.19 kg (approx) |

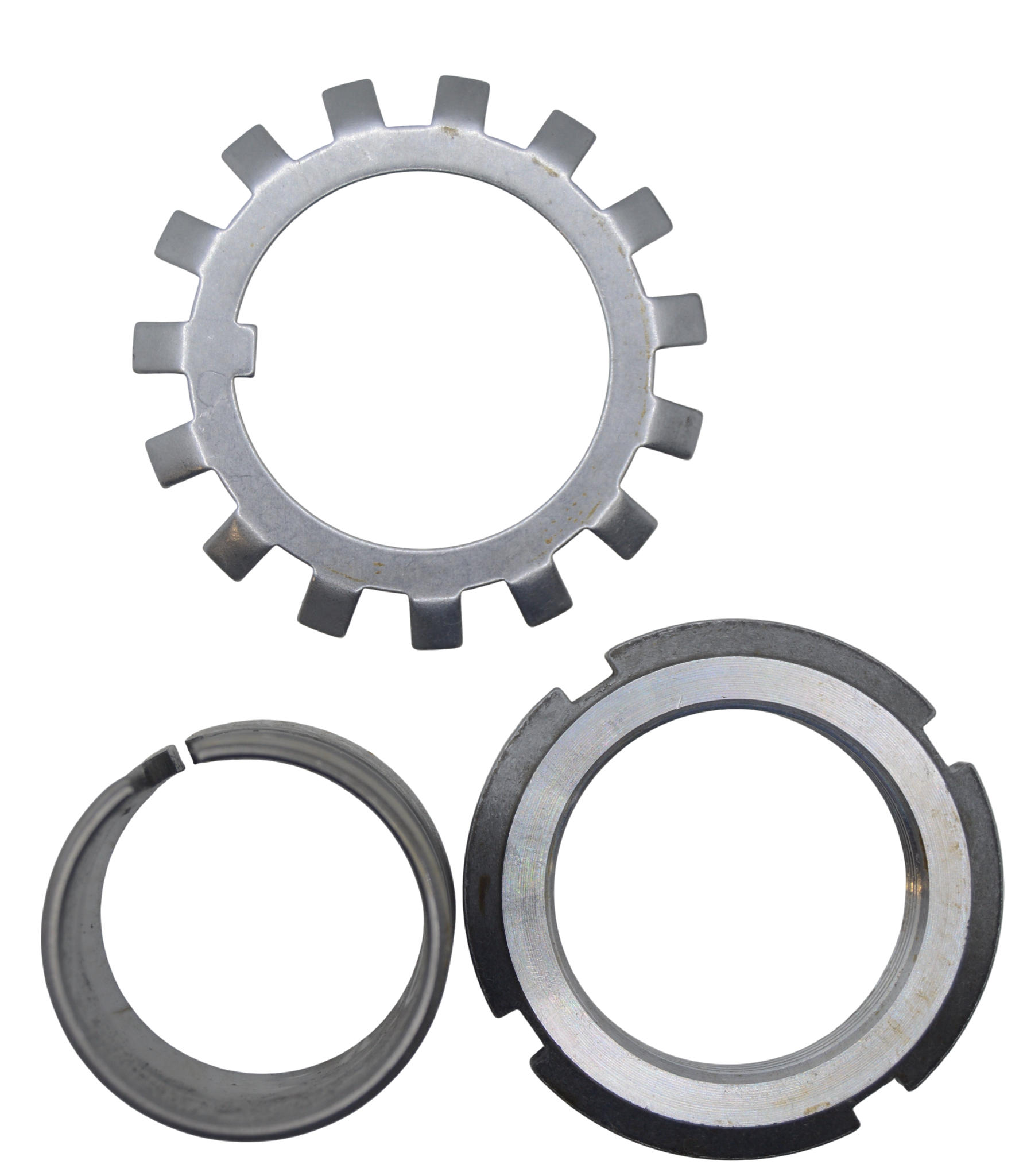

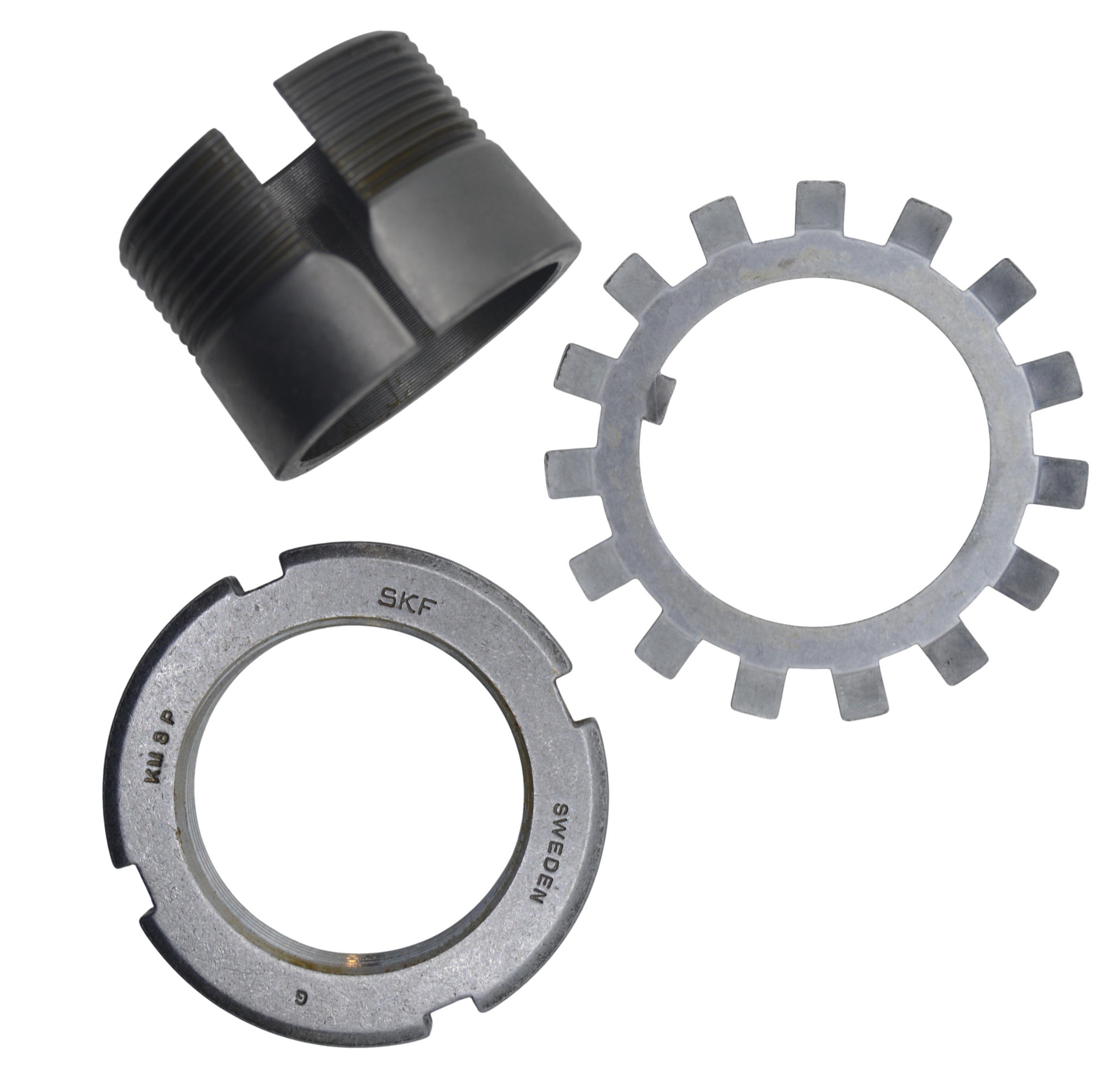

The SKF H 208 adapter sleeve is a split tapered sleeve designed to fit onto a 35 mm shaft and provide a tapered seating for bearings with a tapered inner bore (typically 1:12 taper). It is used where the bearing needs to be located and locked at a specific position on a shaft without machining shoulders or steps. The included KM 8 locknut and MB 8 lock washer secure the sleeve and bearing assembly in place.

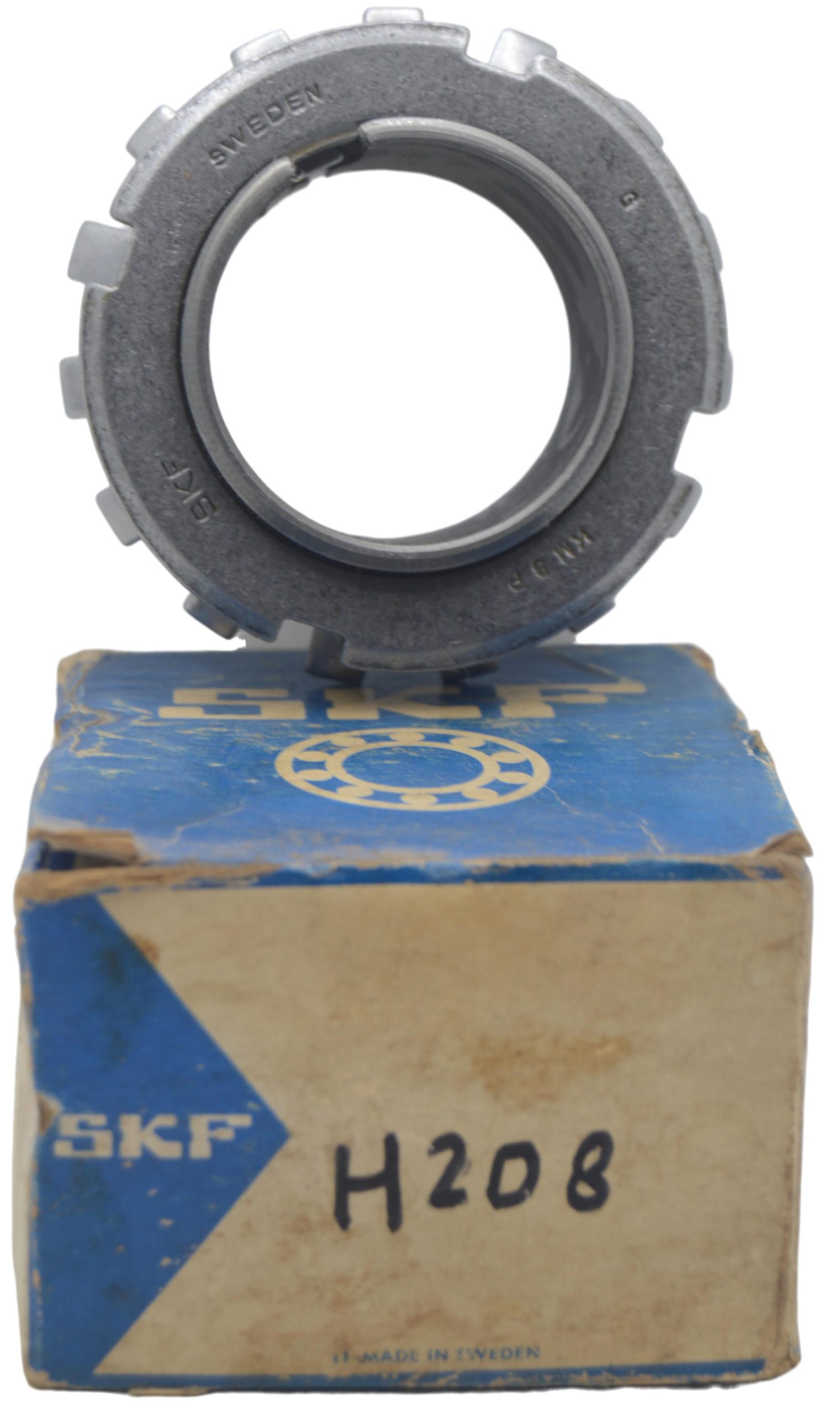

Product: SKF H 208 Adapter Sleeve
Type: Bearing adapter sleeve (metric series)
Use: For mounting tapered-bore bearings (e.g., 1208 K / 20208 K) on smooth or stepped cylindrical shafts. H 208 sleeves make bearing installation and removal easier and allow precise axial positioning.
Brand: SKF (genuine quality industrial bearing accessory)
| Weight | 0.15 kg |
|---|---|
| Dimensions | 40 × 60 × 35 cm |
