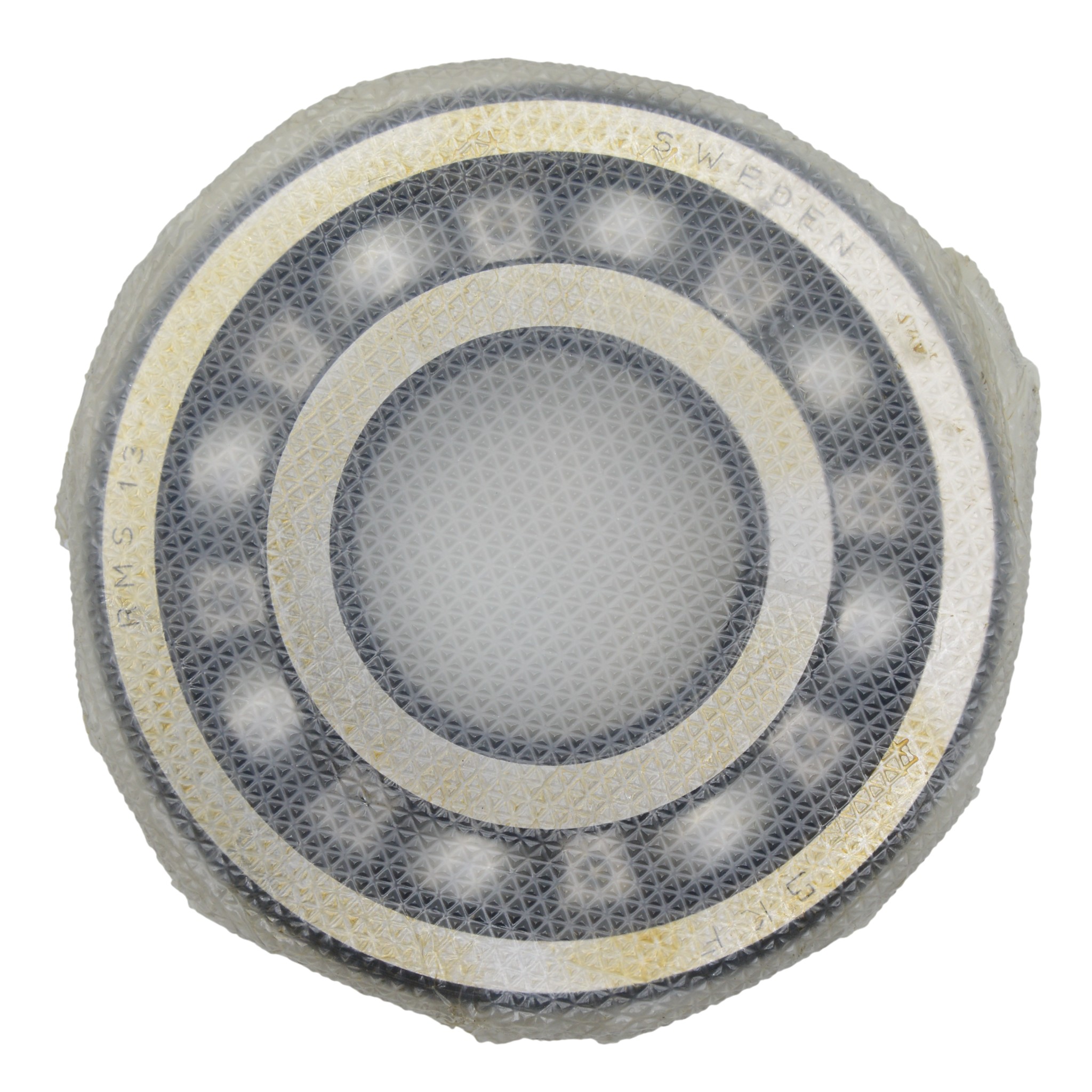

Bearing RMS 13 SKF
Bearing RMS 13 SKF - Image 2
,

Bearing RMS 13 SKF

₨ 5,450

Availability: 1 in stock

SKU: 0992 Categories: , Brand:

Proper Size / Dimensions

  • Inner (bore) diameter: 41.275 mm (1.625 inch)

  • Outer diameter: 101.6 mm (4 inch)

  • Width (thickness): 23.812–23.813 mm (0.9375 inch / 15/16 inch)

These are the standard imperial RMS 13 dimensions used by SKF and other manufacturers.

🛠️ Construction & Features

  • Type: Single-row deep groove ball bearing — versatile and widely applicable.

  • Bore: Cylindrical (straight) bore — ideal for press-fit on shafts.

  • Seal/Shield: Open design (no seals) — allows external lubrication selection.

  • Cage: Steel cage typical for standard performance.

  • Internal clearance: Normal (CN) — suitable for general applications.

  • Material: Bearing steel for inner/outer rings and balls

Product Description — SKF RMS 13 Deep Groove Ball Bearing

The SKF RMS 13 is a single-row deep groove ball bearing from SKF’s imperial RMS series — designed for reliable operation in radial load applications. It features a straight (cylindrical) bore, open design (no seals), and robust construction that delivers smooth rotation, low friction, and the ability to handle both radial loads and moderate axial loads in both directions. This makes it suitable for a wide range of industrial machinery and mechanical systems.

Weight 0.90 kg
Dimensions 45 × 105 × 25 cm
