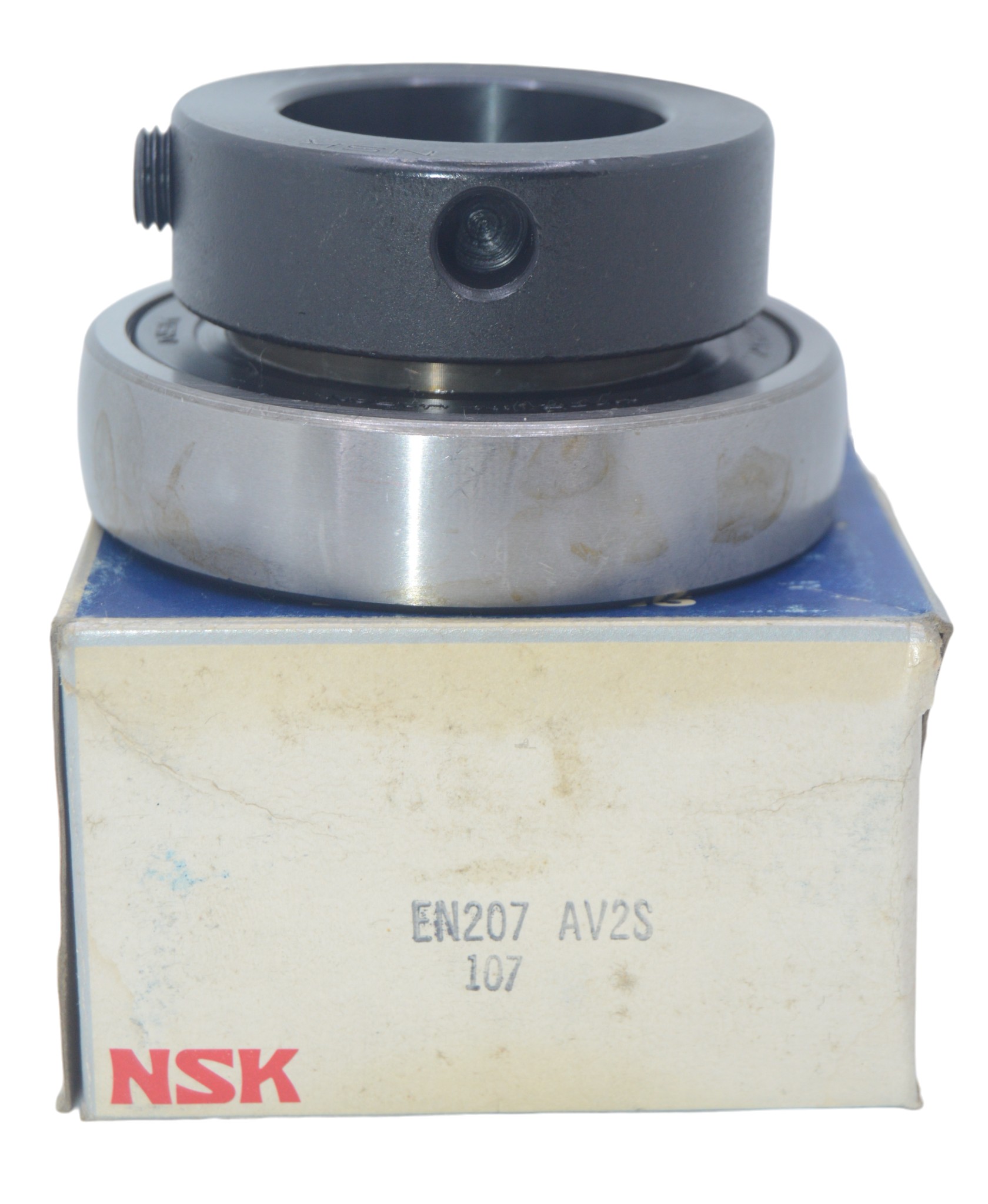

Bearing EN 207 NSK

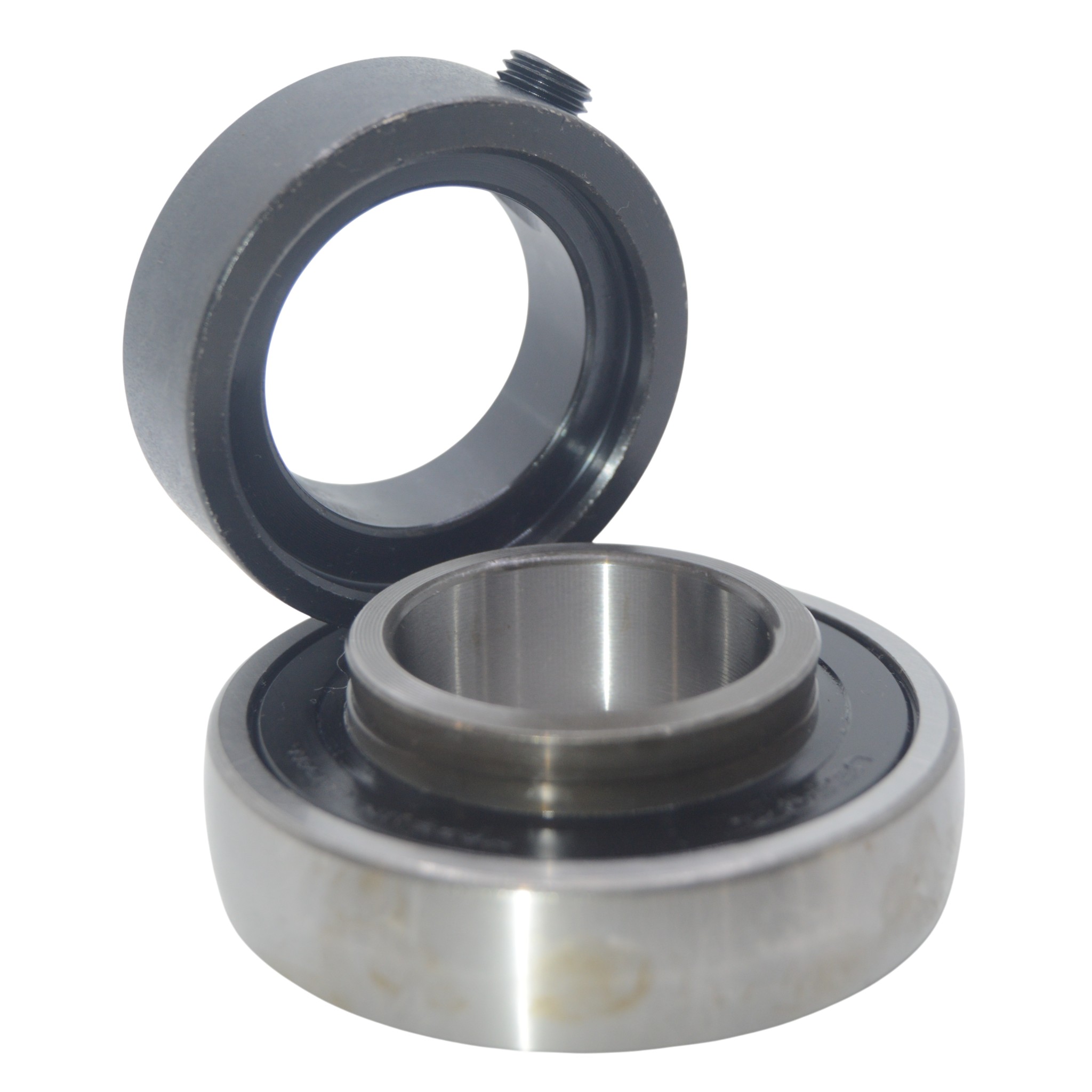

Bearing EN 207 NSK - Image 2

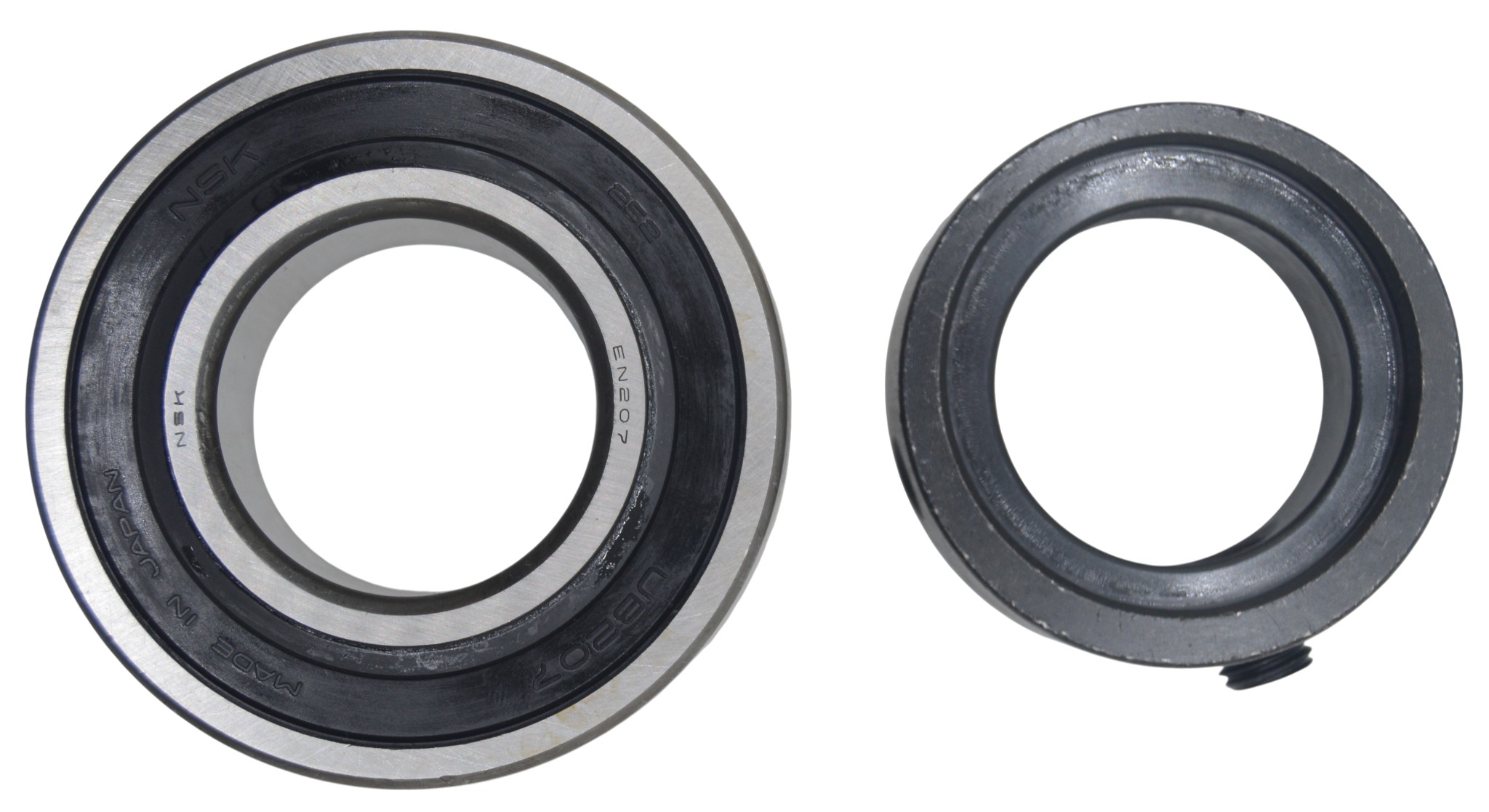

Bearing EN 207 NSK - Image 3

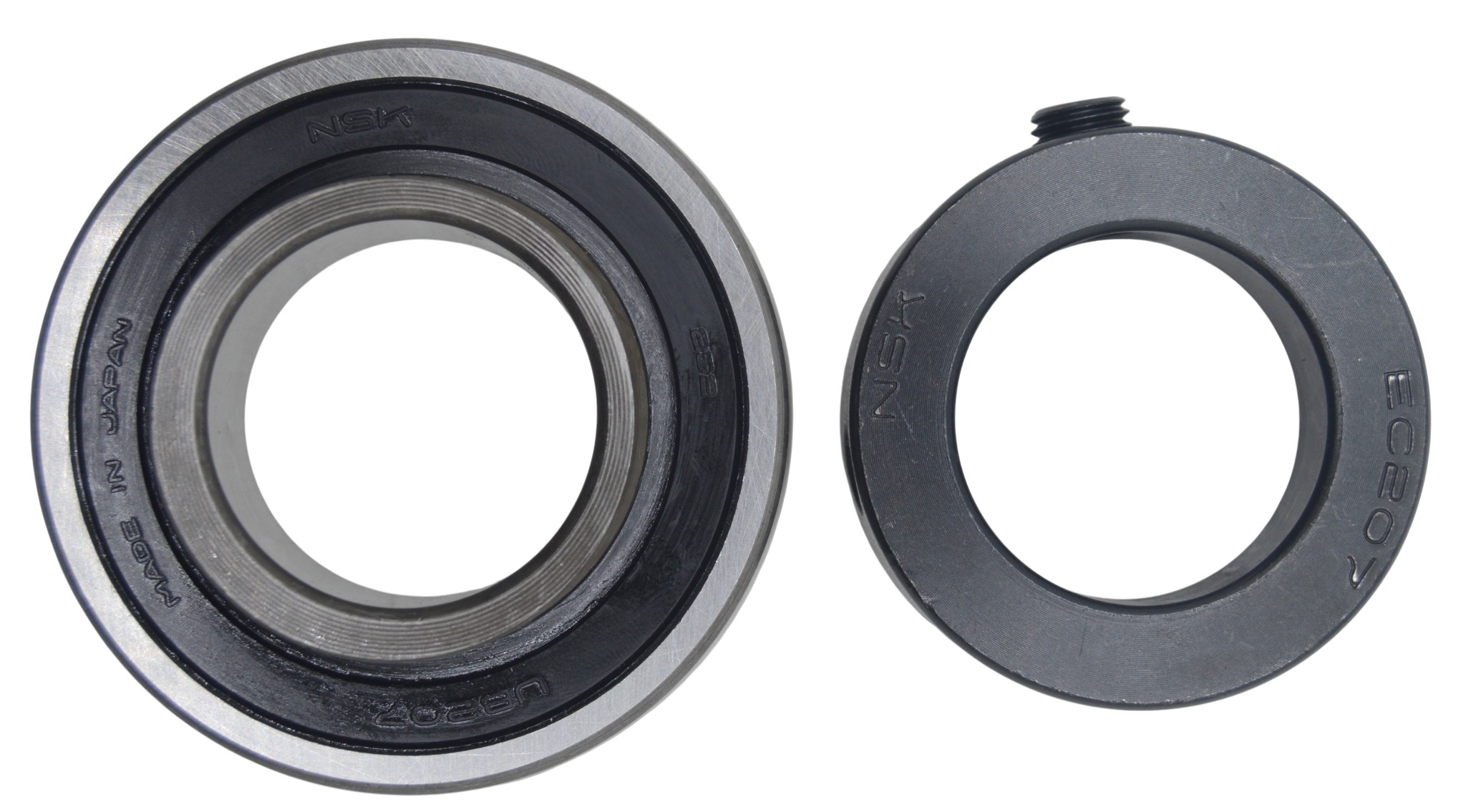

Bearing EN 207 NSK - Image 4

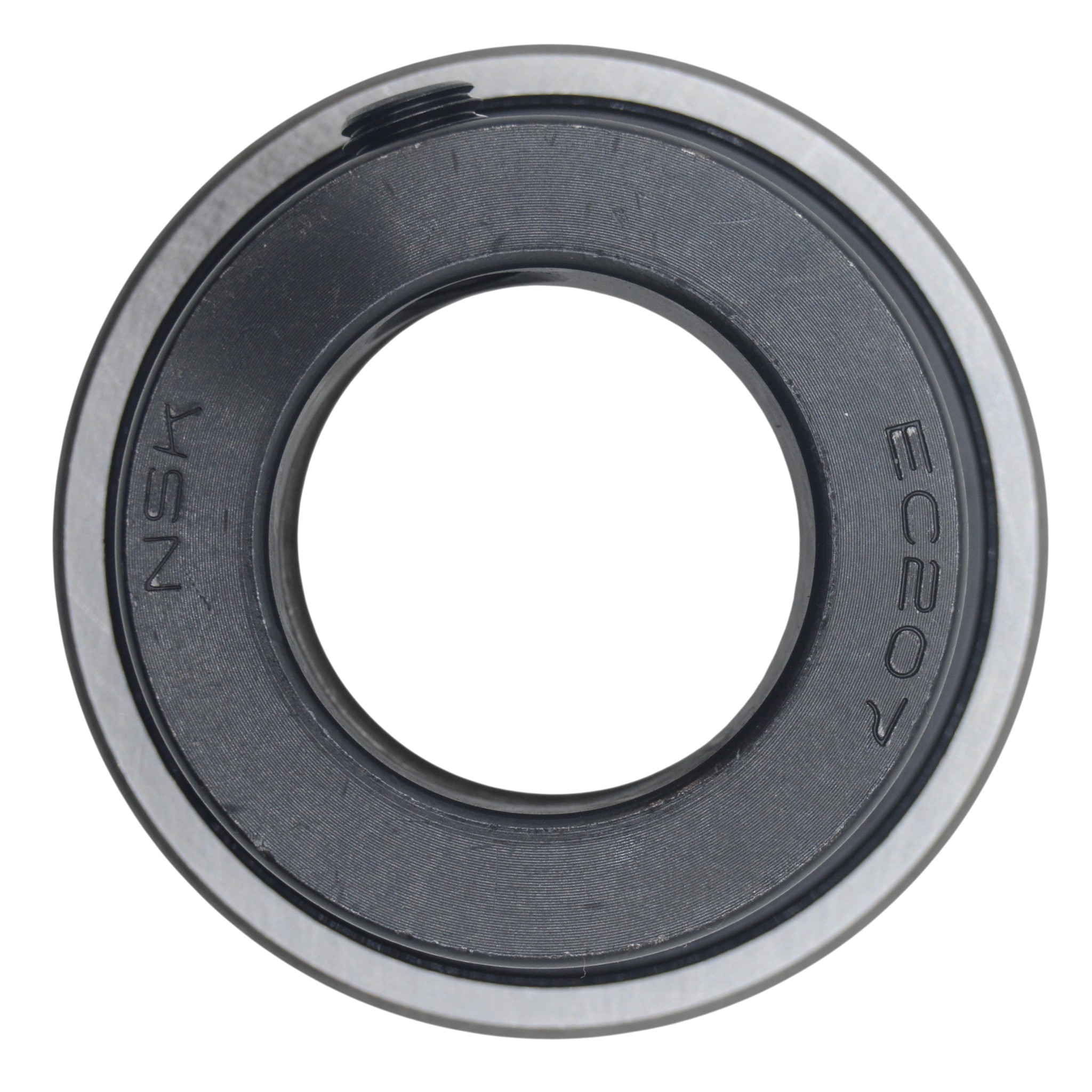

Bearing EN 207 NSK - Image 5
,

Bearing EN 207 NSK

₨ 5,000

Availability: 8 in stock

SKU: 0973 Categories: , Brand:

Nominal Dimensions & Key Specs

Specification Value
Bore (d) 35 mm – fits on a 35 mm shaft.
Outer diameter (D) 72 mm – overall bearing OD.
Overall width (B₁) 38.9 mm – total bearing width.
Inner ring width (B / B₄) 25.4 mm – inner race thickness.
Outer ring width (C) 17 mm – outer race thickness.
Eccentric collar OD (d₃) 55.5 mm – diameter of the locking collar.
Locking collar width (B₅) 17.5 mm – collar thickness.
Set screw size (ds) M10×1.25 – thread size of locking screw.
Distance from collar side to raceway centre (S₁) 29.4 mm – useful for housing design.
Chamfer min. (r) 1.5 mm – edge break.
Approx. Mass ≈0.5 kg – bearing weight.

Product Description – NSK EN 207 Eccentric Locking Collar Bearing

Product Name: Eccentric Locking Collar Bearing EN 207
NSK Designation: AEL207 (and sealed variant AELS207N)
Type: Insert ball bearing with eccentric locking collar
Locking Device: Eccentric collar that clamps to the shaft when rotated, allowing secure axial locking without adapter sleeves or shoulders.
Application: Used in mounted bearing units, conveyor shafts, rollers, motors, gearboxes, pumps, and many types of rotating machinery where ease of installation and secure shaft locking are important

Weight 0.50 kg
Dimensions 35 × 75 × 40 cm
