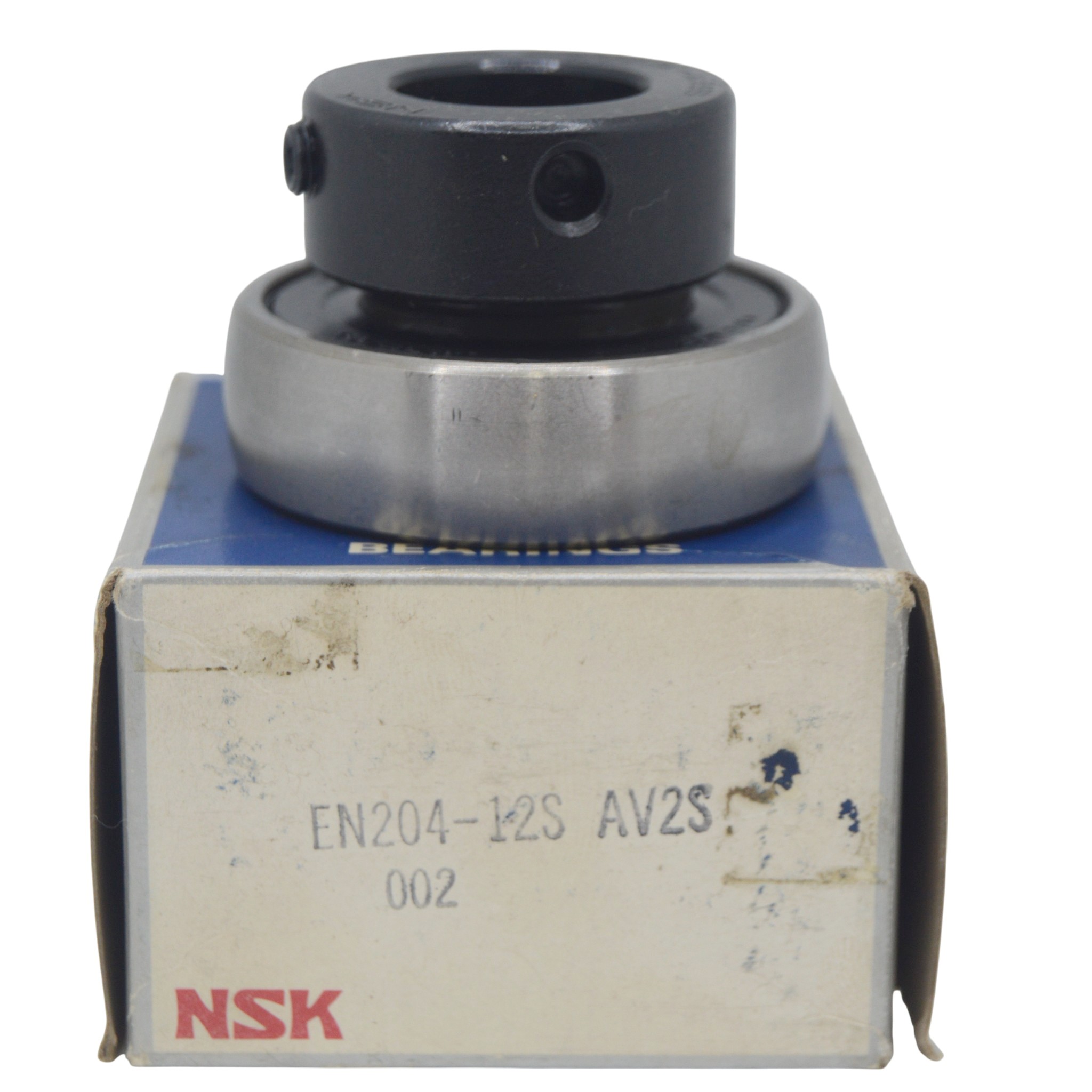

Bearing EN 204 NSK
Bearing EN 204 NSK - Image 2
Bearing EN 204 NSK - Image 3
Bearing EN 204 NSK - Image 4
Bearing EN 204 NSK - Image 5
Bearing EN 204 NSK - Image 6
,

Bearing EN 204 NSK

₨ 3,200

Availability: 71 in stock

SKU: 0970 Categories: , Brand:

Key Dimensions & Specifications — EN 204

Dimension / Feature Specification
Bore (inner diameter, d) 20 mm — fits a 20 mm diameter shaft
Outer diameter (D) 47 mm — bearing outer ring diameter
Overall width (B₁) 30 mm — full bearing assembly thickness
Outer ring width (C) 14 mm — outer ring thickness
Inner ring width (B) 16 mm — inner race thickness
Eccentric collar diameter (d₃) ≈33 mm — diameter of the eccentric locking collar
Locking collar width (B₅) ≈15 mm
Set screw size (ds) M6 × 0.75 — set screw thread for collar
Approx. Weight ~0.13 kg (varies by supplier)

Product Description – NSK EN 204 Eccentric Locking Collar Bearing

Product Name: Eccentric Locking Collar Bearing EN 204 (NSK)
Also Known As: EL204 / AEL204 (alternative designations in some catalogs)
Type: Insert ball bearing with eccentric locking collar
Brand: NSK (industrial bearing)

Application:
Used to mount bearings securely on a smooth cylindrical shaft where a positive locking method is needed without keyways or machined shoulders. The eccentric collar fits over the inner ring, and when rotated and tightened, it clamps onto the shaft for secure axial locking. Ideal for conveyor shafts, mounted units, rollers, motors, gearboxes, and general machinery.

Weight 0.13 kg
Dimensions 20 × 50 × 25 cm
