₨ 2,500
Availability: 100 in stock
Bore (shaft diameter): 15 mm (code 202 corresponds to a 15 mm bore)
Outer diameter (housing fit): 40 mm
Inner bearing width: ~19 mm
Outer ring width: ~12 mm
Locking collar outer diameter: ~29 mm

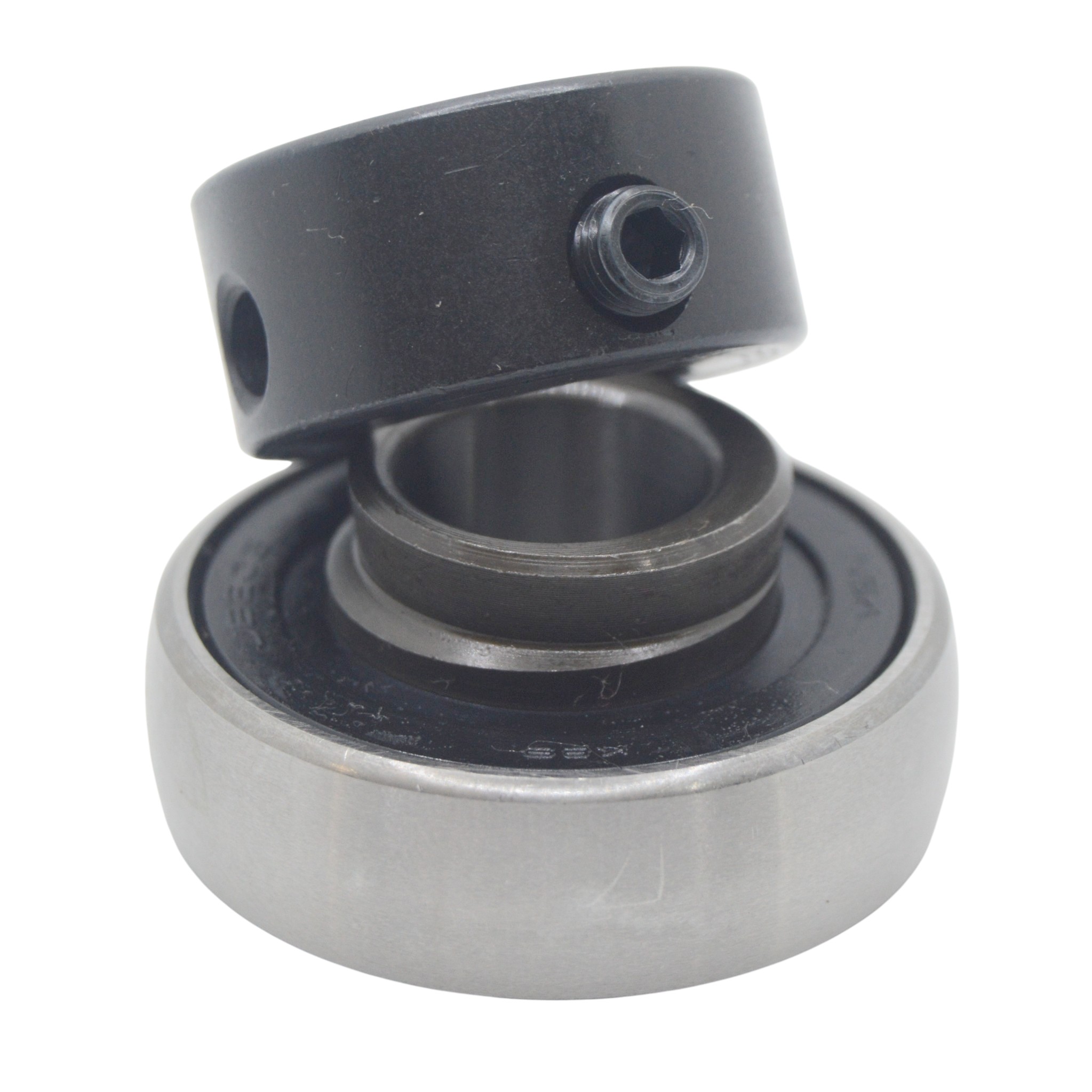

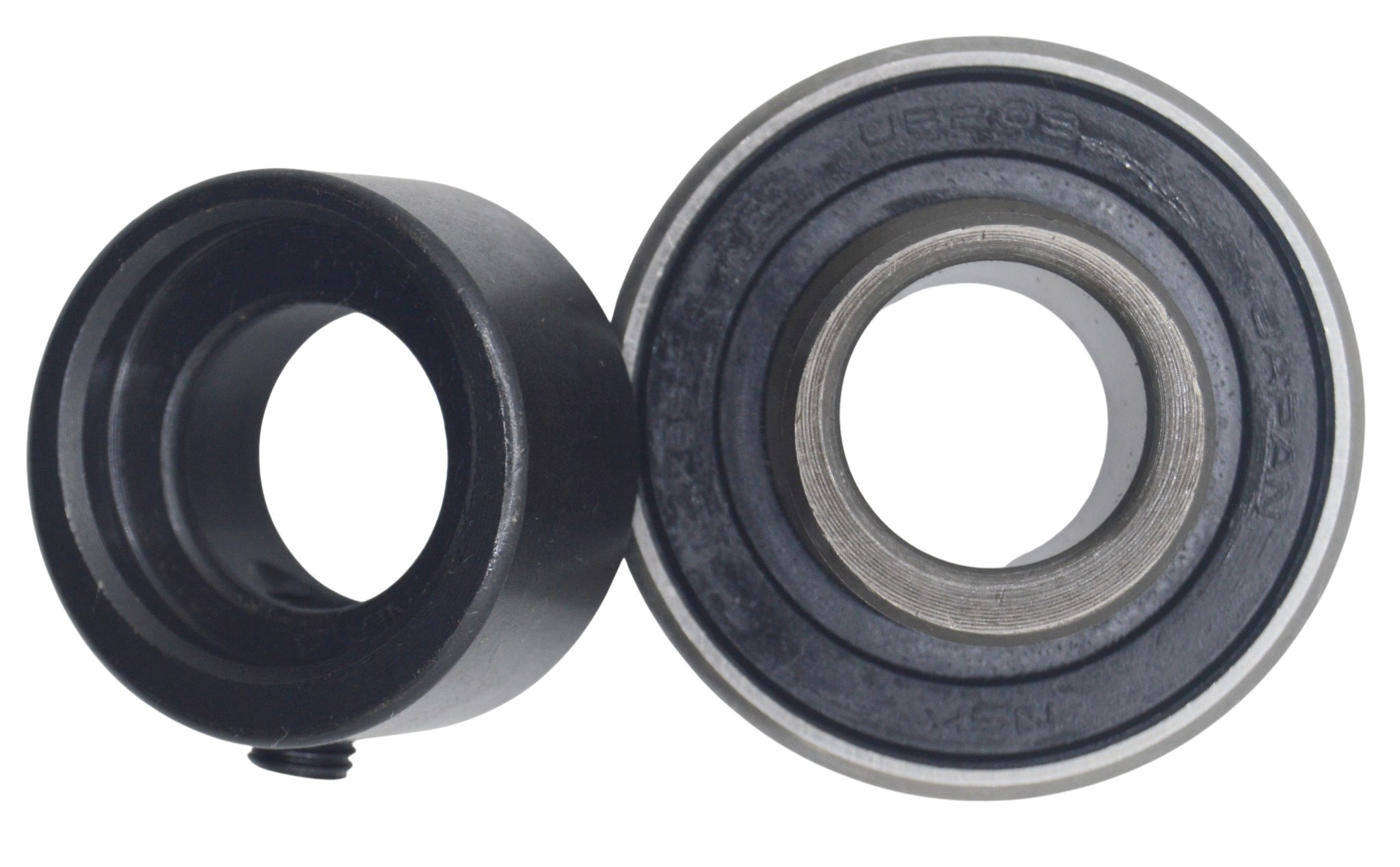

The eccentric locking collar is a ring that fits around the inner race of the bearing and is tightened against the shaft. When you rotate the collar on the inner race, it clamps the bearing onto the shaft securely — providing a simple shaft locking method without needing a separate adapter sleeve.
EN: NSK/industry designation for a deep-groove ball insert bearing with a spherical outer profile and eccentric locking collar option.
202: Standardised insert size that corresponds to a 15 mm bore that fits into housings sized for 202 series bearings.
**NSK EN 202 insert bearing with an eccentric locking collar (the type used in housings where the inner ring is locked to the shaft by turning a collar), the bore (inside diameter) and related dimensions are standard across most manufacturers for this series:
| Weight | 0.11 kg |
|---|---|
| Dimensions | 15 × 40 × 30 cm |
