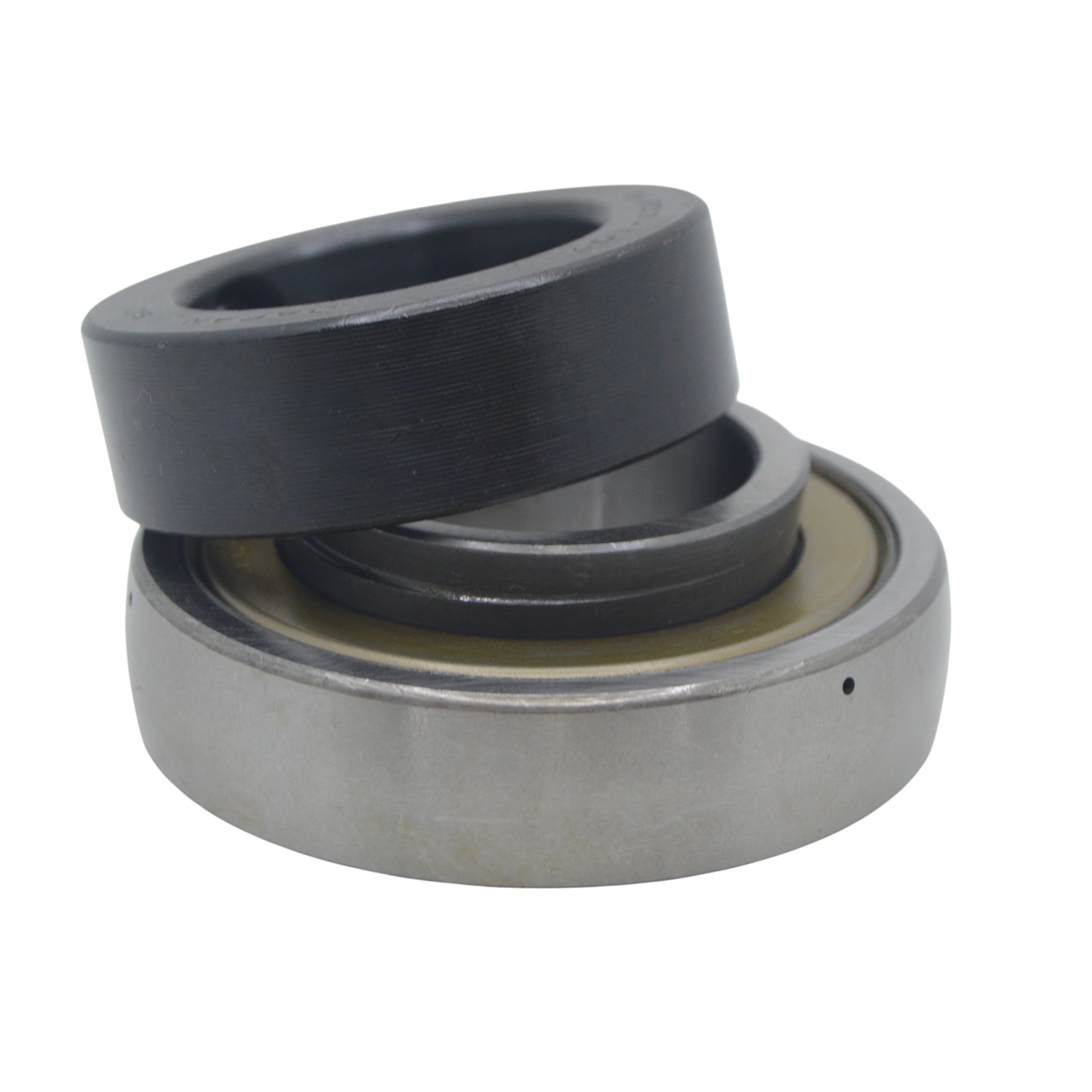

Bearing AEL 207-107 NTN
Bearing AEL 207-107 NTN - Image 2
Bearing AEL 207-107 NTN - Image 3
Bearing AEL 207-107 NTN - Image 4
Bearing AEL 207-107 NTN - Image 5
Bearing AEL 207-107 NTN - Image 6
,

Bearing AEL 207-107 NTN

₨ 5,000

Availability: 20 in stock

SKU: 0975 Categories: , Brand:

Key Dimensions & Specs

Feature Specification
Bore (d) 36.513 mm (1-7/16 in) — shaft size fit.
Outer diameter (D) 72 mm (2.8346 in) — bearing OD.
Overall width (B1) 38.90 mm (≈1.532 in) — total thickness.
Inner ring width (B) 25.40 mm (1.000 in) — inner race width.
Outer ring width (C) 17 mm (0.6693 in) — outer race width.
Locking collar OD (d3) 55.5 mm (2.185 in) — eccentric collar diameter.
Locking collar width (B5) 17.5 mm (0.689 in) — collar thickness.
Set screw thread (ds) 3/8-24 UNF (~M10 equivalent) — locking screw.
Distance raceway centre to collar side (S1) 29.4 mm (1.1575 in) — useful for housing design.
Seal type Double contact seals (nitrile rubber) — dust/contamination protection.
Material Through-hardened steel (industrial).

Product Description – AEL207-107 Eccentric Locking Collar Bearing

Product Name: AEL207-107 Eccentric Locking Collar Bearing
Type: Insert ball bearing with eccentric locking collar
Locking Device: Eccentric collar (EL207-107) that clamps onto a smooth shaft by rotating the collar and tightening the set screw — eliminating the need for adapter sleeves or shoulders.

Application:
Designed for industrial machinery where bearings must be secured directly to shafts — used in housings (pillow blocks, flanges), conveyor rollers, motors, gear drives, fans, and pumps. Compatible with standard bearing housings for 207-series insert

Weight 0.49 kg
Dimensions 40 × 75 × 45 cm
